Hunter PGP 05-17200 Rotor Nozzle Adjustment Tool User Manual

1. परिचय

This manual provides instructions for the proper use and maintenance of the Hunter PGP 05-17200 Rotor Nozzle Adjustment Tool. This tool is designed to facilitate precise adjustments of arc and radius settings on various Hunter rotor and spray head models, ensuring optimal irrigation performance.

The Hunter 05-17200 Rotor Nozzle Adjustment Tool is specifically designed for use with Hunter PGP, PGH, PGM, I-20, I-25, I-40, I-60 series rotors and PS model spray heads.

Figure 1: Two Hunter PGP 05-17200 Rotor Nozzle Adjustment Tools. These white plastic tools feature a central shaft with a key-like end for engaging the sprinkler mechanism and two finger loops for grip.

2. सेटअप

The Hunter PGP 05-17200 Rotor Nozzle Adjustment Tool requires no assembly. It is ready for immediate use upon removal from its packaging.

Before making adjustments, ensure the sprinkler system is active and the specific rotor or spray head requiring adjustment is operating. This allows for visual confirmation of the spray pattern and arc.

3. ऑपरेटिंग सूचना

The adjustment tool is used to modify the arc (the degree of rotation) and radius (the distance of water throw) of compatible Hunter sprinkler heads.

3.1. Identifying Adjustment Points

Hunter rotors typically have two main adjustment points: one for arc adjustment and one for radius adjustment. Consult your specific Hunter rotor or spray head manual for the exact location of these points. The adjustment tool is designed to engage these specific slots or screws.

Figure 2: The Hunter adjustment tool being inserted into the top of a sprinkler head. The tool's key-like end fits into the designated adjustment slot on the sprinkler rotor.

3.2. Arc Adjustment

1. Locate the Arc Adjustment Slot: This is typically a small slot or screw on the top of the rotor head.
2. टूल घाला: Carefully insert the key end of the 05-17200 tool into the arc adjustment slot.
3. Adjust the Arc:
   • ला वाढ the arc, turn the tool clockwise.
   • ला कमी the arc, turn the tool counter-clockwise.
   Observe the sprinkler's spray pattern as you make small adjustments to achieve the desired coverage.

3.3. Radius Adjustment

1. Locate the Radius Adjustment Screw: This is often a screw located near the nozzle.
2. टूल घाला: Use the appropriate end of the 05-17200 tool (often the pin on the opposite end of the key) to engage the radius adjustment screw.
3. Adjust the Radius:
   • ला वाढ the radius (throw distance), turn the tool clockwise.
   • ला कमी the radius, turn the tool counter-clockwise.
   Adjust until the water reaches the desired distance without overspraying.

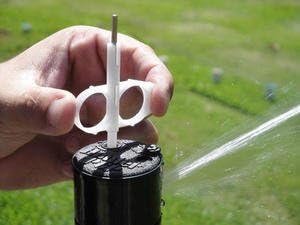

Figure 3: A hand holding the Hunter adjustment tool, which is inserted into a sprinkler head. Water is visibly spraying from the sprinkler, indicating an active system during adjustment.

महत्त्वाचे: Make small, incremental adjustments and observe the results. Over-adjusting can damage the sprinkler mechanism.

4. देखभाल

The Hunter PGP 05-17200 Rotor Nozzle Adjustment Tool is a simple, durable device. To ensure its longevity:

• स्वच्छता: Wipe the tool clean with a damp घाण किंवा मोडतोड काढण्यासाठी प्रत्येक वापरानंतर कापड.
• स्टोरेज: Store the tool in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.
• तपासणी: Periodically inspect the tool for any signs of wear or damage. Discontinue use if the tool is cracked or broken, as this may impair its function or damage the sprinkler head.

5. समस्या निवारण

This tool is mechanical and has few points of failure. Most issues arise from improper use or compatibility.

6. तपशील

7. हमी आणि समर्थन

For information regarding product warranty, please refer to the official Hunter Industries website or contact Hunter customer support directly. Specific warranty terms may vary by region and retailer.

For technical assistance or further inquiries, please visit the Hunter Industries Support Page किंवा त्यांच्या ग्राहक सेवा विभागाशी संपर्क साधा.
