1. उत्पादन संपलेview
The DeVilbiss DPC10 DeKups Adapter is designed to facilitate the use of the DeVilbiss DeKups disposable cup system with compatible spray guns. This adapter ensures a secure and efficient connection, allowing for quick color changes and reduced cleaning time in painting applications.
- उत्पादन प्रकार: Auto Accessory
- मूळ देश: तैवान, चीनचा प्रांत
- हलके डिझाइन: Item Package Weight: 0.022 Pounds
2. सेटअप आणि स्थापना
Proper installation of the DPC10 adapter is crucial for optimal performance and to prevent leaks. This adapter is specifically designed for compatibility with certain spray gun models, including the Sata NR2000 RP and some Harbor Freight gravity feed paint guns (e.g., Black Widow, Spyder guns). Ensure your spray gun has the necessary quick connect or compatible threading.
2.1 Identifying the Adapter
The DPC10 adapter features a threaded end for connection to the spray gun and a quick-connect mechanism for the DeKups disposable cup system.

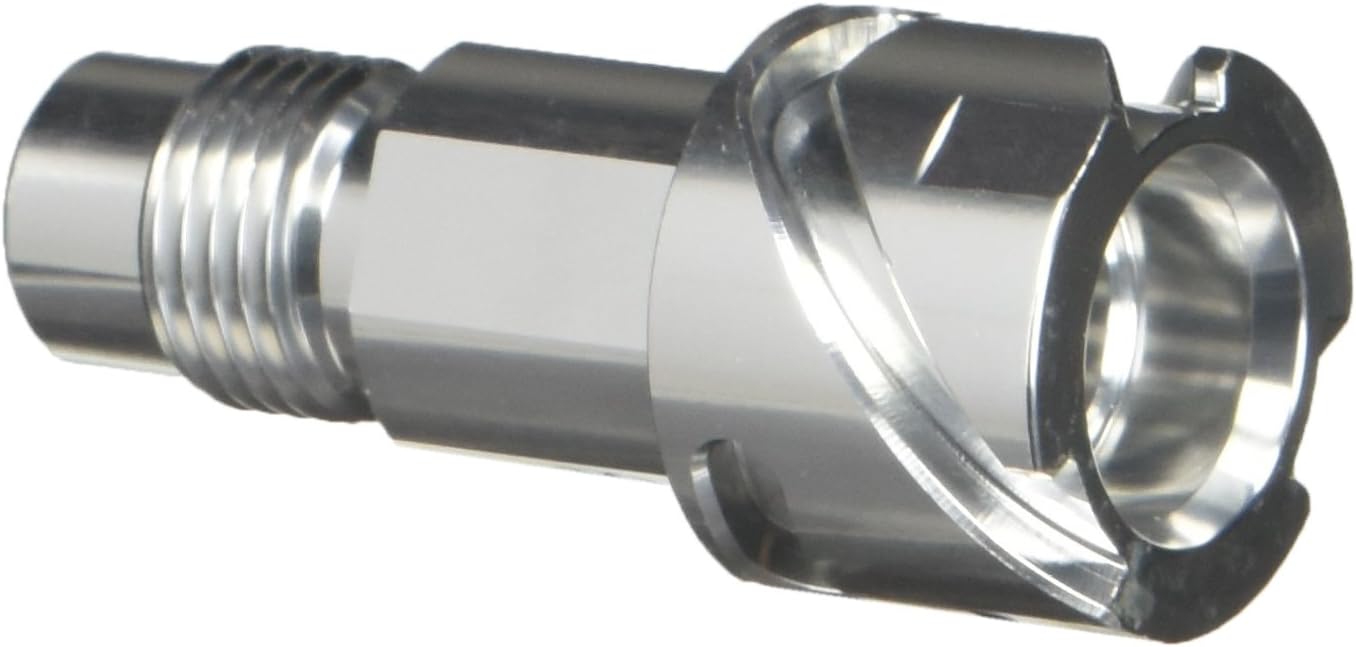

आकृती 1: बाजू view of the DeVilbiss DPC10 DeKups Adapter. The threaded end connects to the spray gun, while the wider end is designed for the DeKups system.

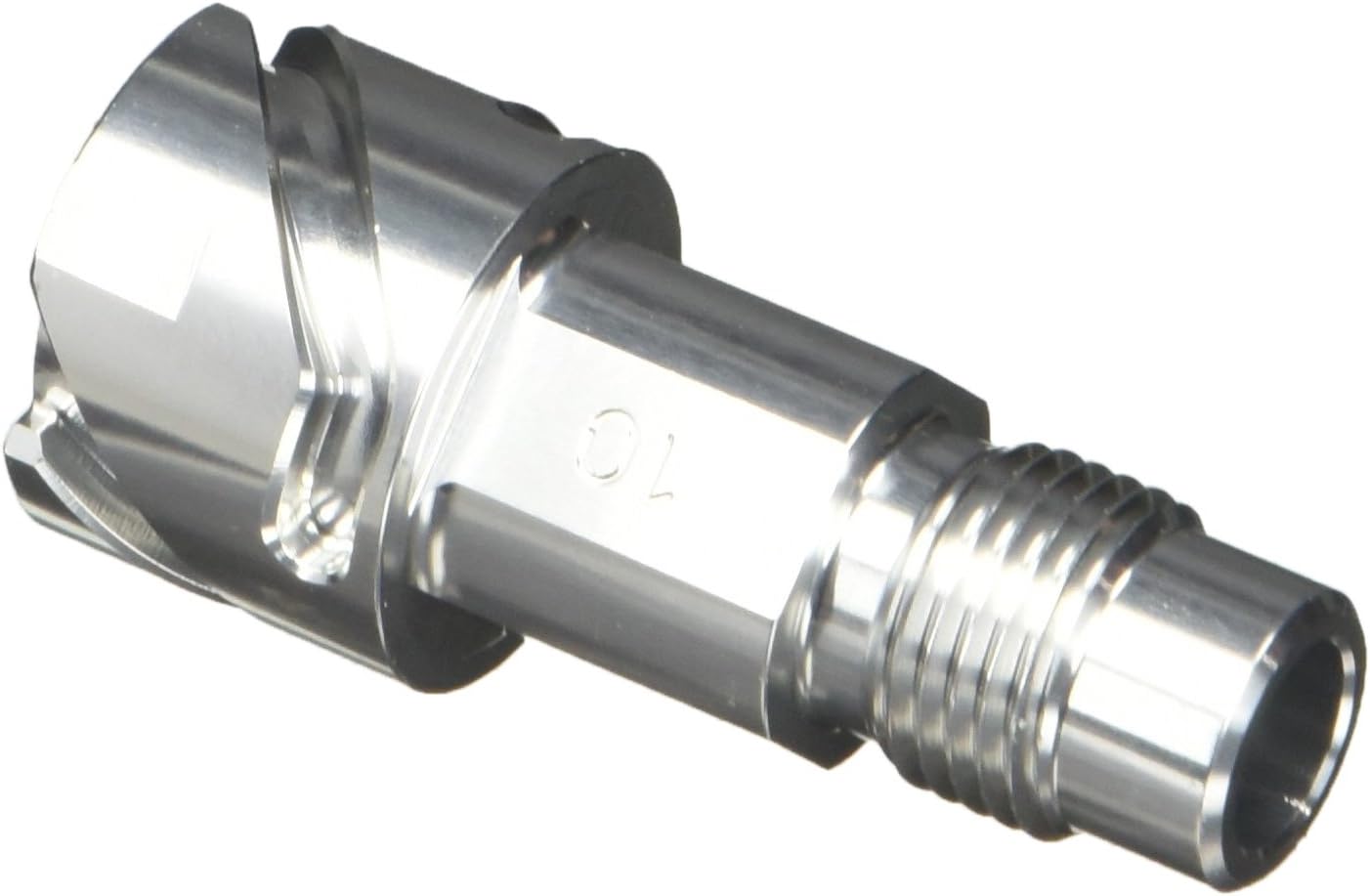

आकृती 2: टोकदार view of the DeVilbiss DPC10 DeKups Adapter, showing the "10" marking on its body, indicating the model number.
2.2 स्थापना चरण
- Prepare the Spray Gun: Ensure your spray gun's fluid inlet is clean and free of debris. If your gun requires a separate quick-connect piece, ensure it is properly installed.
- अडॅप्टर संलग्न करा: Carefully thread the DPC10 adapter onto the fluid inlet of your spray gun. Turn clockwise until hand-tight.
- सुरक्षित कनेक्शन: Do not overtighten, as the adapter is made of aluminum and can strip easily. A snug fit is sufficient to create a seal.
- Attach DeKups System: Once the adapter is securely attached to the gun, the DeKups disposable cup system can be easily clicked into place on the adapter's quick-connect end.
3. ऑपरेटिंग सूचना
The DPC10 adapter simplifies the process of using the DeKups system. Once installed, operate your spray gun as usual, benefiting from the advantages of the disposable cup system.
- रंग तयार करणे: Prepare your paint mixture directly within the DeKups liner.
- सिस्टम कनेक्शन: Attach the DeKups lid and liner assembly to the DPC10 adapter, ensuring it clicks securely into place.
- फवारणी: Proceed with your painting task. The DeKups system allows for spraying at various angles without spills.
- विल्हेवाट: After use, simply detach the DeKups liner and lid for easy disposal, significantly reducing cleanup time.
4. देखभाल
Regular maintenance of your DPC10 adapter will ensure its longevity and reliable performance.
- स्वच्छता: After each use, detach the adapter from the spray gun and clean any paint residue from both the threaded and quick-connect ends. Use appropriate cleaning solvents for your paint type.
- तपासणी: Periodically inspect the threads for any signs of wear, damage, or stripping. Also, check the quick-connect mechanism for proper function.
- स्टोरेज: Store the adapter in a clean, dry place away from harsh chemicals or extreme temperatures.
टीप: The adapter is made of aluminum. Avoid excessive force when tightening to prevent stripping the threads.
5. समस्या निवारण
If you encounter issues with your DPC10 adapter, refer to the following common problems and solutions:
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Adapter does not fit spray gun. | Incompatibility with spray gun model; incorrect thread type or length. | Verify your spray gun's model and required adapter type. The DPC10 is designed for Sata NR2000 RP and similar models. Some DeVilbiss Starting Line full-size guns may require a DPC81. |
| Paint leaks from adapter connection. | Adapter not tightened sufficiently; damaged threads; missing or damaged O-ring (if applicable). | Ensure the adapter is hand-tight. Inspect threads for damage. If an O-ring is present, check its condition and replace if necessary. |
| Threads on adapter or gun are stripped. | Overtightening the adapter. | Avoid excessive force when tightening. If threads are stripped, the adapter or gun component may need replacement. |
6. तपशील
| विशेषता | तपशील |
|---|---|
| ब्रँड | डेव्हिलबिस |
| मॉडेल | DPC-10 |
| आयटम वजन | ८.५ औंस (अंदाजे ०.५३ पौंड) |
| उत्पादन परिमाणे | 3.4 x 2.2 x 0.7 इंच |
| मूळ देश | तैवान |
| उत्पादक भाग क्रमांक | DPC10 |
| ASIN | B001WARPL4 |
7. वॉरंटी माहिती
Specific warranty details for the DeVilbiss DPC10 DeKups Adapter are not provided in this manual. For information regarding product warranty, including terms, conditions, and duration, please refer to the official DeVilbiss website or contact DeVilbiss customer service directly. Retain your proof of purchase for any warranty claims.
8. ग्राहक समर्थन
For further assistance, technical support, or inquiries regarding the DeVilbiss DPC10 DeKups Adapter, please contact DeVilbiss customer support. Contact information can typically be found on the official DeVilbiss webसाइटवर किंवा उत्पादन पॅकेजिंगवर.
