1. परिचय
Thank you for choosing the Progress Lighting P8072-28 Recessed Trim. This incandescent open splay recessed trim features a white powdercoat finish and is designed for use with insulated ceilings. It has a 7-3/4 inch outside diameter and is intended for use with compatible Progress 6-inch recessed lighting housings (P87, P187, P83, P88, P82). Please read these instructions carefully before installation and use to ensure proper function and safety.
आकृती 1.1: समोर view of the P8072-28 Recessed Trim with an incandescent bulb installed.
2. सुरक्षितता माहिती
चेतावणी: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing. All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring connections.
- Do not install this trim with non-compatible recessed housings. Compatibility is specified for Progress 6-inch recessed housings (P87, P187, P83, P88, P82).
- Refer to the housing's specifications for maximum wattage. This trim is rated for up to 250 watts at 120 volts.
- सर्व कनेक्शन सुरक्षित आणि योग्यरित्या इन्सुलेटेड असल्याची खात्री करा.
- उत्पादनात कोणत्याही प्रकारे बदल करू नका.
३. घटकांची यादी
स्थापना सुरू करण्यापूर्वी सर्व घटक उपस्थित आहेत याची खात्री करा:
- P8072-28 Recessed Trim (1 unit)
- Product and Installation Sheet (this document)
Note: Recessed housing and incandescent bulb are sold separately.
4. सेटअप आणि स्थापना
This trim is designed for easy installation into compatible 6-inch recessed housings. The trim mounts to the can with a 2-inch by 7-inch leaf spring mechanism, which pulls the trim tightly to the ceiling.
- पॉवर बंद करा: Before starting, ensure the power to the circuit is turned off at the circuit breaker or fuse box.
- Prepare Housing: Ensure the recessed housing (e.g., P87, P187) is properly installed in the ceiling according to its own instruction manual.
- सॉकेट जोडा: एलamp socket from the recessed housing attaches directly to the trim. This eliminates the need for an adjustable socket mount within the housing. Secure the socket to the designated attachment point on the trim.
- बल्ब स्थापित करा: Screw the appropriate incandescent bulb (up to 250W) into the socket.
- Insert Trim: Carefully push the trim assembly, with the bulb and socket attached, into the recessed housing opening. The leaf springs on the trim will compress and then expand to firmly hold the trim against the ceiling. Apply firm, even pressure until the trim is flush with the ceiling surface.
- पुनर्संचयित शक्ती: Once the trim is securely in place, restore power at the circuit breaker or fuse box and test the light.
आकृती १: वरपासून खालपर्यंत view of the P8072-28 Recessed Trim, illustrating the open splay design.

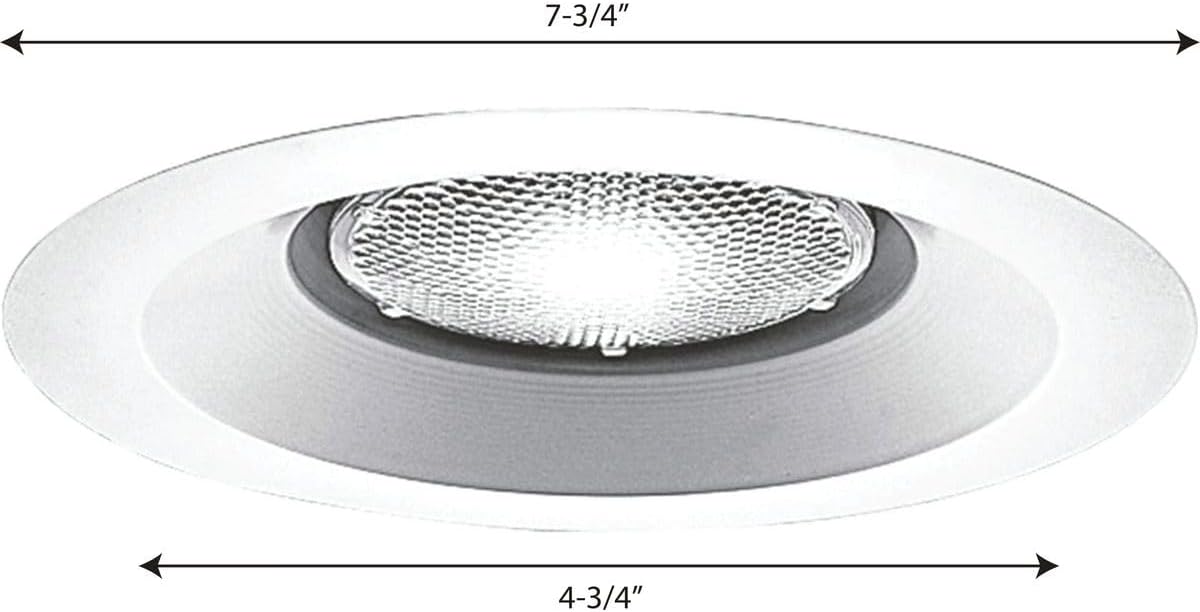

Figure 4.2: Dimensions of the P8072-28 Recessed Trim, showing a 7-3/4 inch outside diameter.
5. ऑपरेटिंग सूचना
The P8072-28 Recessed Trim operates in conjunction with your installed recessed housing and a compatible incandescent bulb. Operation is controlled via a standard wall switch connected to the lighting circuit.
- योग्य वाट याची खात्री कराtage bulb (up to 250W) is installed.
- लाईट फिक्स्चर चालू किंवा बंद करण्यासाठी भिंतीवरील स्विच वापरा.
6. देखभाल
The P8072-28 Recessed Trim requires minimal maintenance.
- स्वच्छता: To clean the trim, ensure power is off. Wipe with a soft, dry or slightly damp कापड. अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स वापरू नका, कारण ते फिनिशिंग खराब करू शकतात.
- बल्ब बदलणे: Turn off power at the circuit breaker. Carefully pull the trim down from the ceiling to access the bulb. Unscrew the old bulb and screw in a new one of the correct type and wattage. Reinsert the trim firmly into the housing.
7. समस्या निवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| प्रकाश चालू होत नाही. | फिक्स्चरला शक्ती नाही. बल्ब सैल झाला आहे किंवा जळाला आहे. चुकीची वायरिंग. | सर्किट ब्रेकर/फ्यूज तपासा. बल्ब घट्ट करा किंवा बदला. वायरिंग तपासण्यासाठी पात्र इलेक्ट्रिशियनचा सल्ला घ्या. |
| Trim does not sit flush with ceiling. | Improper installation of leaf springs. Housing not properly installed. | Ensure leaf springs are fully engaged. Verify housing installation according to its manual. |
| हलके झटके. | सैल बल्ब. विसंगत डिमर स्विच. वायरिंगचा प्रश्न. | बल्ब घट्ट करा. Ensure dimmer is compatible with incandescent lights. पात्र इलेक्ट्रिशियनचा सल्ला घ्या. |
8. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | P8072-28 |
| ब्रँड | प्रगती प्रकाश |
| प्रकार | Recessed Trim (Open Splay) |
| रंग | पांढरा |
| साहित्य | ॲल्युमिनियम |
| व्यासाच्या बाहेर | 7-3/4 इंच (19.69 सेमी) |
| उत्पादनाची परिमाणे (L x W x H) | ५.९१" x १.९७" x १.९७" (१५.०१ सेमी x ५.०० सेमी x ५.०० सेमी) |
| आयटम वजन | 5.9 औंस (167 ग्रॅम) |
| खंडtage | 120 व्होल्ट |
| कमाल वाटtage | 250 Watts (Incandescent) |
| उर्जा स्त्रोत | कॉर्ड केलेले इलेक्ट्रिक |
| इनडोअर/आउटडोअर वापर | इनडोअर |
| सुसंगत गृहनिर्माण | Progress 6-inch recessed housings (P87, P187, P83, P88, P82) |
| UPC | 785247807222 |
9. वॉरंटी माहिती
This Progress Lighting P8072-28 Recessed Trim comes with a 1 वर्षांची मर्यादित वॉरंटी from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modification. For warranty claims, please retain your proof of purchase and contact Progress Lighting customer support.
१०. समर्थन आणि संपर्क
For technical assistance, troubleshooting not covered in this manual, or warranty inquiries, please contact Progress Lighting customer support. Visit the official Progress Lighting webसर्वात अद्ययावत संपर्क माहितीसाठी साइट.
