डेव्हिलबिस ८०२३४२ स्टार्टिंगलाइन एचव्हीएलपी ग्रॅव्हिटी स्प्रे गन किट वापरकर्ता मॅन्युअल

परिचय

The DeVilbiss 802342 StartingLine HVLP Gravity Spray Gun Kit is a comprehensive system designed for auto painting and touch-up applications. This kit includes a full-size HVLP spray gun with a 1.3mm fluid tip, a mini HVLP detail gun with a 1.0mm fluid tip, an air adjusting valve, and a 1.8mm primer set-up. All components are conveniently organized within a durable molded case, providing a complete solution for various painting needs.

सुरक्षितता माहिती

Always prioritize safety when operating spray painting equipment. Failure to follow safety guidelines can result in serious injury or property damage.

• वायुवीजन: Use in a well-ventilated area to prevent the accumulation of hazardous fumes. If adequate ventilation is not available, use appropriate respiratory protection.
• वैयक्तिक संरक्षणात्मक उपकरणे (PPE): Always wear appropriate PPE, including safety glasses or goggles, gloves, and a respirator suitable for paint fumes.
• ज्वलनशील साहित्य: Many paints and solvents are flammable. Keep away from open flames, sparks, and other ignition sources. Do not smoke while operating the spray gun.
• दाब सुरक्षा: Never exceed the maximum recommended air pressure for the spray gun. Always release air pressure from the system before performing maintenance or cleaning.
• केमिकल एक्सपोजर: हे उत्पादन तुम्हाला शिशासह रसायनांच्या संपर्कात आणू शकते, जे कॅलिफोर्निया राज्याला कर्करोग आणि जन्म दोष किंवा इतर पुनरुत्पादक हानीसाठी ओळखले जाते. अधिक माहितीसाठी येथे जा www.P65Warnings.ca.gov.
• विद्युत सुरक्षा: Ensure all electrical connections for air compressors or other equipment are properly grounded and in good condition.
• मुले आणि पाळीव प्राणी: मुलांना आणि पाळीव प्राण्यांना कामाच्या जागेपासून आणि उपकरणांपासून दूर ठेवा.

उत्पादन संपलेview आणि घटक

The DeVilbiss 802342 kit provides a versatile set of tools for various painting tasks. Familiarize yourself with the components before use.

Figure 1: DeVilbiss 802342 StartingLine HVLP Gravity Spray Gun Kit, showing the full-size HVLP spray gun, mini HVLP detail gun, air adjusting valve, and various cleaning accessories neatly organized in a molded case.

Figure 2: Contents of the DeVilbiss StartingLine Spray Gun Kit, including two spray guns, fluid cups, and cleaning tools.

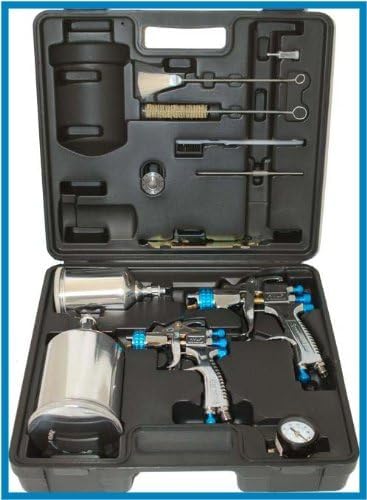

आकृती 3: आणखी एक view of the DeVilbiss StartingLine Spray Gun Kit components, highlighting the full-size and mini spray guns along with accessories.

किट सामग्री:

• Full-Size HVLP Gravity Spray Gun: Equipped with a 1.3mm fluid tip, suitable for general painting applications.
• Mini HVLP Detail Gun: Features a 1.0mm fluid tip, ideal for touch-ups and fine detail work.
• Air Adjusting Valve: For precise control over air pressure at the gun.
• 1.8mm Primer Set-up: An additional fluid tip and needle for spraying thicker materials like primers.
• Molded Case: Provides organized storage and protection for the kit components.
• स्वच्छता उपकरणे: Various brushes and tools for proper maintenance.

सेटअप

1. अनपॅक घटक: Carefully remove all items from the molded case and inspect for any damage.
2. Select Fluid Tip: Choose the appropriate fluid tip (1.0mm, 1.3mm, or 1.8mm) based on the viscosity of the material you intend to spray. Ensure the corresponding needle and air cap are installed.
3. फ्लुइड कप जोडा: Securely attach the gravity-feed fluid cup to the top of the spray gun.
4. हवा पुरवठा कनेक्ट करा: Connect the air adjusting valve to the spray gun's air inlet, then connect your air hose from the compressor to the air adjusting valve. Ensure all connections are tight to prevent air leaks.
5. प्रारंभिक साफसफाई: Before first use, clean the spray gun thoroughly with an appropriate cleaning solvent to remove any manufacturing residues.

ऑपरेटिंग सूचना

1. साहित्य तयार करा: Mix and thin your paint or coating material according to the manufacturer's instructions. Strain the material to remove any particles that could clog the gun.
2. Fill Fluid Cup: Pour the prepared material into the gravity-feed fluid cup. Do not overfill.
3. Set Air Pressure: With the air adjusting valve, set the air pressure at the gun to the recommended PSI for your material. For HVLP guns, this is typically between 10-30 PSI (Maximum Pressure: 30 PSI).
4. स्प्रे पॅटर्न समायोजित करा:
   • Fan Control Knob: Adjust this knob to change the width of the spray pattern, from a narrow round pattern to a wide fan.
   • Fluid Control Knob: Controls the amount of material flowing through the gun. Turn clockwise to decrease flow, counter-clockwise to increase.
5. चाचणी स्प्रे: Always perform a test spray on a piece of scrap material to verify the spray pattern and material atomization before applying to your actual workpiece. Adjust settings as needed.
6. फवारणी तंत्र:
   • पृष्ठभागापासून एकसारखे अंतर (सामान्यत: १०-१२ इंच) ठेवा.
   • Move the gun at a steady, even speed, overlapping each pass by about 50%.
   • Trigger the gun fully at the beginning of each pass and release at the end to avoid excessive material buildup.

देखभाल

Proper cleaning and maintenance are essential for the longevity and optimal performance of your spray guns.

1. तात्काळ स्वच्छता: Clean the spray gun immediately after each use. Do not allow paint to dry inside the gun.
2. रिकामा द्रवपदार्थ कप: Empty any remaining material from the fluid cup.
3. फ्लश गन: Pour a small amount of appropriate cleaning solvent into the cup and spray it through the gun until clear solvent emerges.
4. वेगळे करा आणि स्वच्छ करा:
   • Remove the air cap, fluid tip, and needle.
   • Use the provided cleaning brushes and solvent to thoroughly clean all internal and external parts. Pay special attention to the air cap holes and fluid passages.
   • Do not use metal objects to clean the fluid tip or air cap holes, as this can damage them.
5. स्नेहन: Lightly lubricate the needle packing and air valve packing with a non-silicone lubricant designed for spray guns.
6. Reassembly and Storage: Reassemble the gun carefully. Store the clean and dry spray gun in its molded case to protect it from dust and damage.

समस्यानिवारण

हा विभाग तुम्हाला येऊ शकणाऱ्या सामान्य समस्यांना संबोधित करतो आणि संभाव्य उपाय प्रदान करतो.

तपशील

हमी आणि समर्थन

For detailed warranty information, technical support, or to purchase replacement parts, please refer to the official DeVilbiss webसाइट किंवा त्यांच्या ग्राहक सेवेशी संपर्क साधा.

An official Installation Manual (PDF) is available for further reference:

• इन्स्टॉलेशन मॅन्युअल (पीडीएफ) डाउनलोड करा.
