परिचय
This instruction manual provides detailed guidance for the proper use and maintenance of your DeVilbiss 192212 Spray Gun Cleaning Kit. Adhering to these instructions will ensure optimal performance and longevity of your spray gun and cleaning tools. This kit is designed for use with all types of spray guns.
उत्पादन संपलेview
The DeVilbiss 192212 Spray Gun Cleaning Kit includes a comprehensive set of tools designed for thorough cleaning of all spray guns. The kit contains various brushes, cleaning wires, and a pick tool to address different cleaning needs.

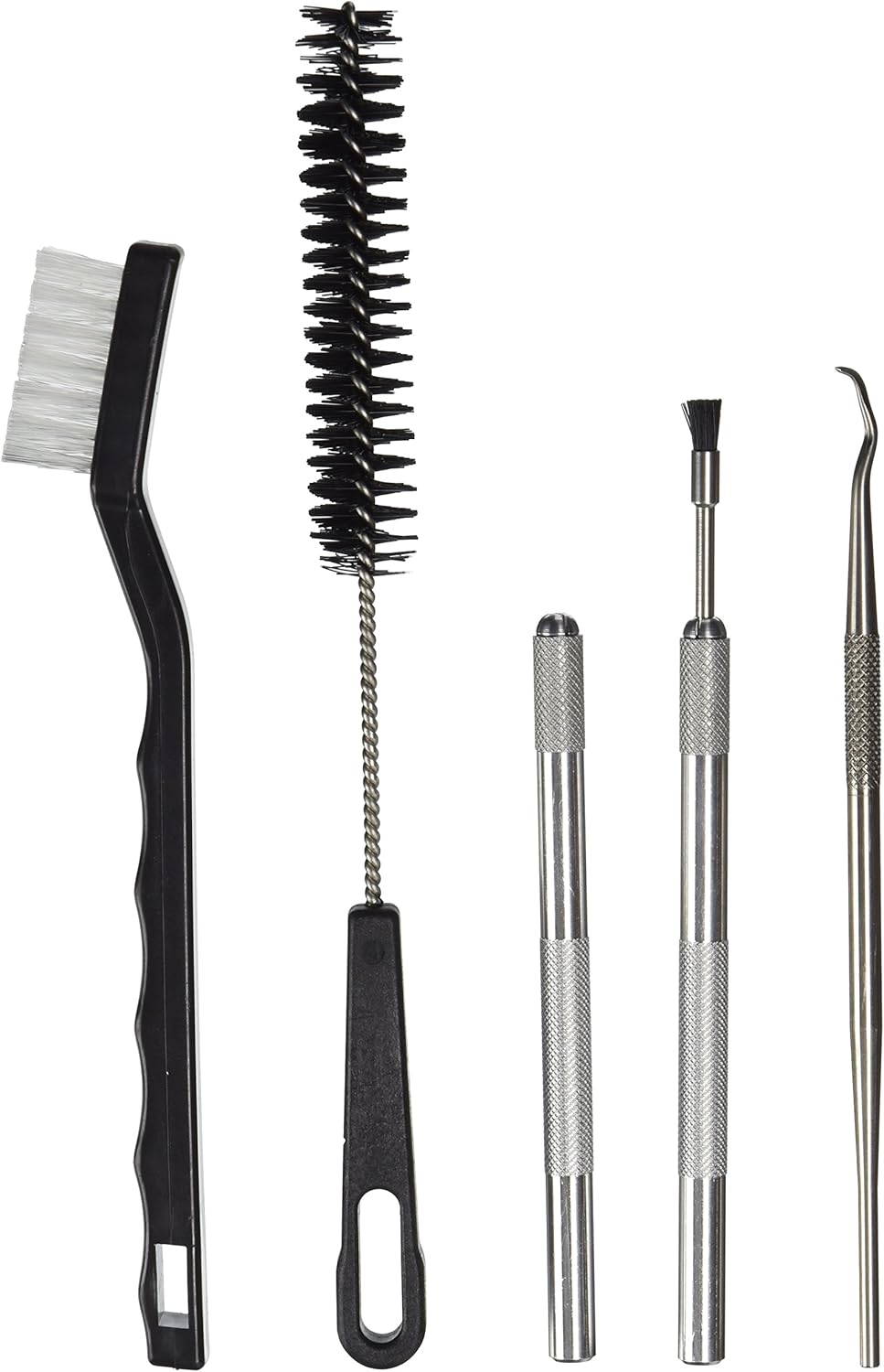

This image displays the complete DeVilbiss 192212 Spray Gun Cleaning Kit, featuring a large scrub brush, a long cylindrical brush, two types of cleaning wires with textured handles, and a curved pick tool, all designed for comprehensive spray gun maintenance.
किटचे घटक:
- Assorted Brushes: For cleaning internal and external surfaces.
- Cleaning Wires: For clearing small orifices and passages.
- Pick Tool: For removing stubborn debris from crevices.
सेटअप
Proper preparation is crucial for effective and safe cleaning. Follow these steps before beginning the cleaning process:
- हवा पुरवठा खंडित करा: Ensure your spray gun is completely disconnected from its air supply.
- Drain Material: Safely drain any remaining paint or coating material from the spray gun and cup.
- संरक्षणात्मक उपकरणे घाला: Always wear appropriate personal protective equipment, including chemical-resistant gloves and eye protection, to prevent contact with cleaning solvents and paint residues.
- स्वच्छता क्षेत्र तयार करा: Work in a well-ventilated area and have all necessary cleaning solvents and rags readily available.
ऑपरेटिंग सूचना
Follow these instructions for effective cleaning of your spray gun components using the DeVilbiss 192212 kit:
ब्रशेस वापरणे:
- Select the appropriate brush size for the specific internal and external surfaces of your spray gun.
- Apply a suitable cleaning solvent to the brush and the spray gun components.
- Scrub gently but thoroughly to loosen dried paint and debris from the gun body, cup, and other accessible parts.
Using Cleaning Wires:
- For small orifices and passages, such as air caps, fluid tips, and air passages, carefully insert the cleaning wires.
- Twist and push gently to dislodge blockages. Do not force wires, as this may damage precision components.
- Always ensure the wire is smaller than the passage to avoid damage.
Using the Pick Tool:
- The pick tool is useful for removing stubborn debris from crevices, threads, and hard-to-reach areas.
- Exercise caution to avoid scratching or damaging critical surfaces or precision-machined parts.
पोस्ट-सफाई:
- After cleaning, rinse all components with clean solvent or water as recommended by your spray gun manufacturer.
- Allow all parts to dry completely before reassembly to prevent contamination or corrosion.
देखभाल
To ensure the longevity and effectiveness of your DeVilbiss 192212 Cleaning Kit, follow these maintenance guidelines:
- Clean Tools After Each Use: After each cleaning session, thoroughly clean the brushes, wires, and pick tool with appropriate solvents to remove all paint and debris.
- स्वच्छ धुवा आणि वाळवा: Rinse the tools thoroughly with clean water or solvent and allow them to air dry completely before storage.
- योग्य स्टोरेज: Store the cleaning kit in a clean, dry place to prevent corrosion and damage to the tools. Keep them organized to easily find the correct tool for future use.
- पोशाख तपासा: Periodically inspect brushes for excessive wear or shedding bristles, and cleaning wires for bending or damage. Replace worn tools as necessary.
समस्यानिवारण
If you encounter issues during the cleaning process, consider the following:
- Problem: Paint residue remains after cleaning.
उपाय: Ensure adequate soaking time in solvent. Use a stronger solvent if necessary, ensuring it is compatible with your spray gun materials. Increase scrubbing intensity with appropriate brushes. - Problem: Cleaning wires or picks get stuck in passages.
उपाय: Do not force the tool. Remove it and try a smaller size or apply more solvent to loosen the blockage. Inspect the passage for any damage or unusual obstructions. - Problem: Tools appear damaged or ineffective.
उपाय: Replace any worn or damaged components of the cleaning kit to ensure effective and safe cleaning.
तपशील
- मॉडेल: 192212
- ब्रँड: डेव्हिलबिस
- आयटम वजन: 5.1 औंस
- उत्पादन परिमाणे: 9.4 x 4.3 x 0.8 इंच
- मूळ देश: तैवान
- भाग क्रमांक: 192212
- UPC: 658701018338
हमी आणि समर्थन
For product support or inquiries regarding the DeVilbiss 192212 Spray Gun Cleaning Kit, please contact DeVilbiss customer service. Refer to your spray gun's manual for specific cleaning recommendations and warranty information related to the spray gun itself, as this cleaning kit is an accessory.
