Yofidra 20V Cordless Electric Staple Nail Gun - User Manual

1. परिचय

Thank you for choosing the Yofidra 20V Cordless Electric Staple Nail Gun. This versatile 2-in-1 tool is designed for both stapling and nailing tasks, making it ideal for a wide range of woodworking and DIY projects. Featuring a brushless motor, depth adjustment, and an integrated LED light, this tool offers efficiency, precision, and convenience. Please read this manual thoroughly before operation to ensure safe and effective use.

2. सुरक्षितता माहिती

Always prioritize safety when operating power tools. Failure to follow safety instructions can result in serious injury. Keep this manual for future reference.

• सुरक्षा चष्मा आणि श्रवण संरक्षणासह योग्य वैयक्तिक संरक्षक उपकरणे (पीपीई) घाला.
• Ensure the workpiece is stable and secured before fastening.
• गोळीबाराच्या ठिकाणापासून हात आणि शरीराचे अवयव दूर ठेवा.
• टूल कधीही स्वतःकडे किंवा इतरांकडे निर्देशित करू नका.
• Disconnect the battery before performing any adjustments, maintenance, or clearing jams.
• Use only fasteners recommended for this tool.
• स्फोटक वातावरणात, जसे की ज्वलनशील द्रव, वायू किंवा धूळ यांच्या उपस्थितीत साधन चालवू नका.

For detailed safety instructions, please refer to the official safety document: सुरक्षितता माहिती (PDF).

3. उत्पादन घटक

Figure 3.1: Key Components Overview
तपशीलवार views highlighting the integrated LED lights for improved visibility, the durable alloy steel muzzle, the depth adjustment feature, and the intuitive control panel.

• एलईडी दिवे: चांगल्या दृश्यमानतेसाठी कार्यक्षेत्र प्रकाशित करते.
• Alloy Steel Muzzle: Durable and designed for consistent fastening.
• खोली समायोजन नॉब: Allows precise control over fastener depth.
• नियंत्रण पॅनेल: For power and mode selection.
• मासिक: Holds staples or nails.
• बॅटरी पोर्ट: For inserting the 20V lithium-ion battery.

4. सेटअप

4.1. बॅटरी इन्स्टॉलेशन

1. साधन बंद असल्याची खात्री करा.
2. Align the 20V lithium-ion battery with the battery port on the tool.
3. बॅटरी सुरक्षितपणे जागी येईपर्यंत पोर्टमध्ये सरकवा.
4. काढण्यासाठी, बॅटरी रिलीज बटण दाबा आणि बॅटरी बाहेर सरकवा.

4.2. Loading Staples and Nails

Figure 4.1: Loading Fasteners
A four-step visual guide demonstrating how to open the magazine, insert staple strips or brad nail strips, and close the magazine securely.

1. साधन बंद केले आहे आणि बॅटरी काढून टाकली आहे याची खात्री करा.
2. Press the magazine release latch and pull the magazine open.
3. Insert a strip of 18 GA straight nails (15-50 mm) or U-shaped staples (19-40 mm) into the magazine. Ensure the fasteners are oriented correctly.
4. Push the magazine closed until it locks securely.

4.3. Adjusting Depth

Figure 4.2: Depth Adjustment

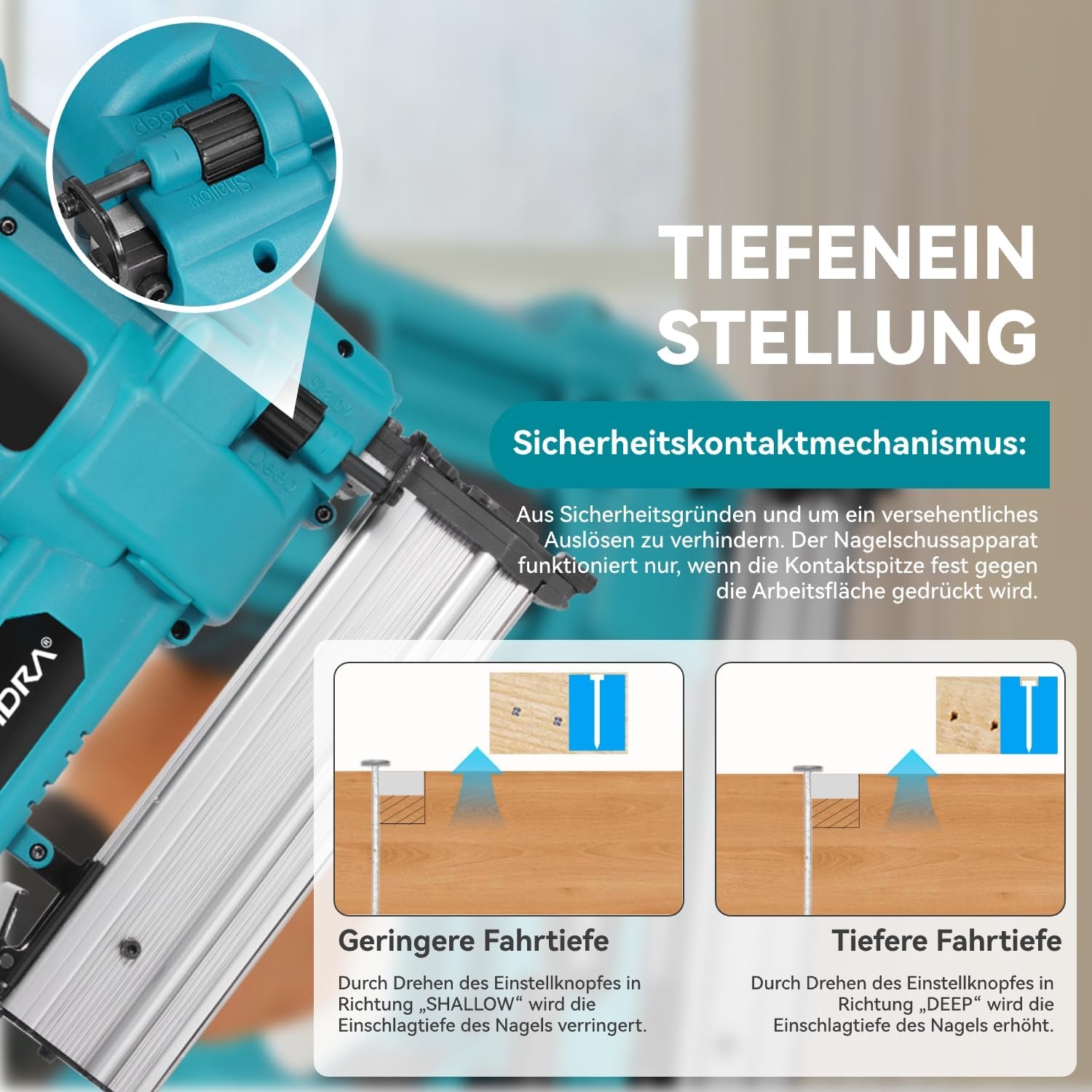

Close-up of the depth adjustment knob, allowing users to control the fastening depth for various materials. Includes diagrams showing shallower and deeper drive depths.

The depth adjustment knob is located near the muzzle. Rotate the knob to increase or decrease the fastening depth. Test on a scrap piece of material to achieve the desired depth before working on your project.

5. ऑपरेटिंग सूचना

5.1. पॉवर चालू/बंद

Press the power button on the control panel to turn the tool on. The LED indicator will light up. Press again to turn off.

5.2. Selecting Firing Mode

Figure 5.1: Dual Firing Modes
Illustration of the two firing modes: single shot for precision and continuous firing for rapid work, capable of over 70 nails per minute.

The tool features two firing modes:

• Single Firing Mode: For precise fastening. Press the tool against the workpiece, then pull the trigger to fire one fastener.
• Continuous Firing Mode: For rapid fastening. Hold the trigger, then press the tool against the workpiece to fire fasteners continuously. The tool can fire up to 70 fasteners per minute.

२. एलईडी लाईट वापरणे

The integrated LED light automatically illuminates when the tool is active, providing optimal visibility in low-light conditions.

५.१. सामान्य ऑपरेशन टिप्स

• Always ensure the safety contact mechanism is fully depressed against the workpiece before pulling the trigger.
• साधनावर घट्ट पकड ठेवा.
• Avoid over-fastening by adjusting the depth setting as needed.

Figure 5.2: Cordless Advantage
This image emphasizes the advantages of the cordless design, showing the tool in use without a compressor, highlighting its flexibility, portability, efficiency, and safety.

आकृती ६.२: बहुमुखी अनुप्रयोग
Examples of various applications for the tool, including woodworking, home decoration, furniture assembly, and DIY projects like building a pet house.

6. देखभाल

नियमित देखभालीमुळे तुमच्या उपकरणाचे दीर्घायुष्य आणि इष्टतम कामगिरी सुनिश्चित होते.

• स्वच्छता: After each use, wipe down the tool with a clean, dry cloth. Remove any dust or debris from the magazine and firing mechanism.
• तपासणी: Periodically inspect the tool for any signs of damage, loose screws, or worn parts. Do not use a damaged tool.
• स्टोरेज: Store the tool and batteries in a cool, dry place, away from direct sunlight and moisture. Ensure the battery is removed from the tool during storage.
• बॅटरी काळजी: Charge batteries fully before storage and recharge every few months if not in use to maintain battery health.

7. समस्या निवारण

If you encounter issues not listed here or if problems persist, please contact Yofidra customer support.

8. तपशील

9. हमी आणि समर्थन

For information regarding the product warranty, please refer to the warranty card included with your purchase or contact your retailer. For technical assistance, spare parts, or any other inquiries, please contact Yofidra customer service through their official channels or the retailer where the product was purchased.
