पीकडो वायरलेस एचडीएमआय ट्रान्समीटर आणि रिसीव्हर वापरकर्ता मॅन्युअल

परिचय

This manual provides comprehensive instructions for the safe and efficient operation of your PeakDo Wireless HDMI Transmitter and Receiver. This device is designed to provide a convenient, cable-free solution for transmitting high-definition video and audio signals, supporting resolutions up to 4K@30Hz with minimal latency. It is ideal for various applications including gaming, video streaming, presentations, and use with AR glasses.

उत्पादन संपलेview

The PeakDo Wireless HDMI system consists of two main components: a Transmitter (TX) and a Receiver (RX).

Image: The PeakDo Wireless HDMI Transmitter (smaller, stick-like) and Receiver (larger, rectangular) units.

घटक आणि बंदरे

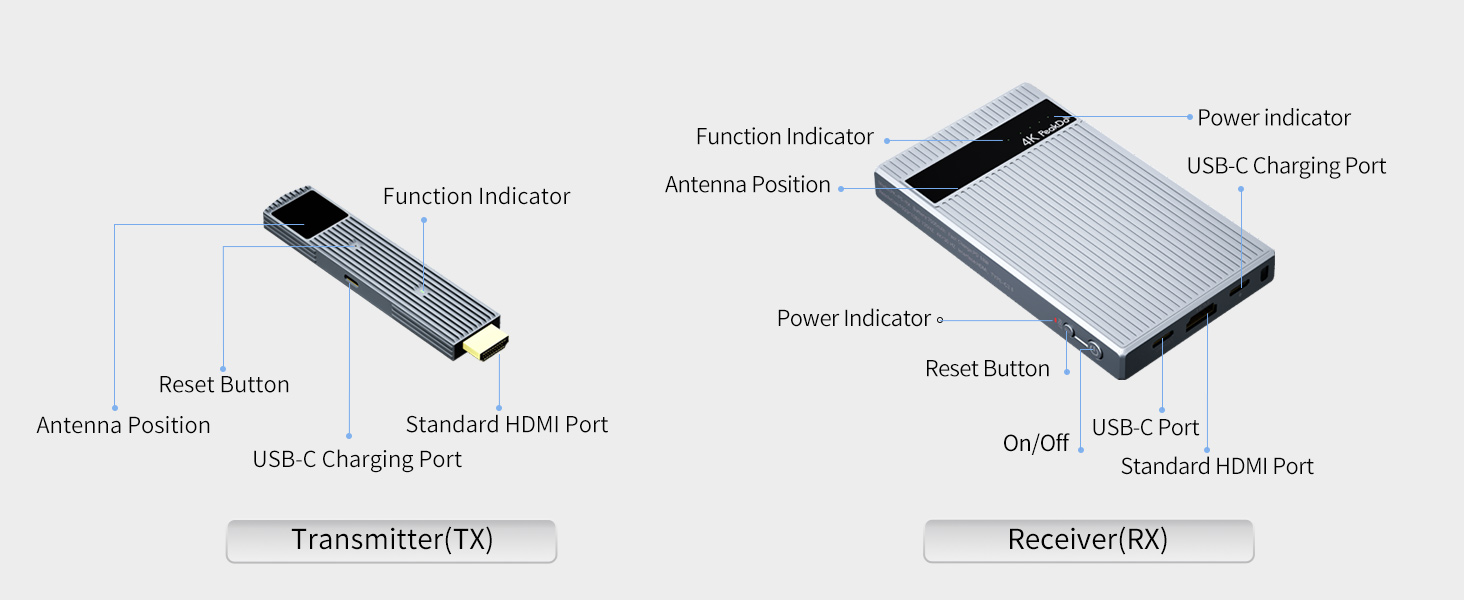

Image: Detailed diagram showing the ports and indicators on both the Transmitter (TX) and Receiver (RX) units.

• ट्रान्समीटर (टीएक्स):
  • Standard HDMI Port: Connects to source devices (e.g., PS5/4, Xbox, Switch, PC, Laptop, Camera).
  • USB-C Charging Port: For power supply.
  • Function Indicator: Displays device status.
  • Reset Button: For device reset or pairing.
  • Antenna Position: Optimal area for signal transmission.
• प्राप्तकर्ता (RX):
  • Standard HDMI Port: Connects to display devices (e.g., Monitor, TV, Projector).
  • USB-C Port: For power supply and data transfer (USB-C 3.1).
  • USB-C Charging Port: For charging the internal battery and powering connected devices.
  • On/Off Switch: Powers the receiver on or off.
  • Power Indicator: Shows power status.
  • Function Indicator: Displays device status.
  • Reset Button: For device reset or pairing.
  • Antenna Position: Optimal area for signal reception.

बॉक्समध्ये काय आहे

Image: An illustration showing the PeakDo Wireless HDMI Receiver (RX), Transmitter (TX), USB-A to USB-C cable, USB-C to USB-C PD cable, and an HDMI extension cable.

• 1 x PeakDo Wireless HDMI Receiver (RX)
• 1 x PeakDo Wireless HDMI Transmitter (TX)
• 1 x USB-A ते USB-C केबल
• 1 x USB-C to USB-C PD Cable
• 1 x HDMI Extension Cable
• १ x वापरकर्ता मॅन्युअल (हे दस्तऐवज)

सेटअप मार्गदर्शक

Follow these steps to set up your PeakDo Wireless HDMI system.

Image: A step-by-step diagram illustrating the connection process for the transmitter and receiver units.

1. Install Transmitter (TX):
   • Plug the Transmitter into the HDMI port of your source device (e.g., PC, laptop, Switch, PS4, PS5, Xbox, camera).
   • Power the Transmitter with an external power supply (at least 5V/2A) using the provided USB-C cable.
2. Install Receiver (RX):
   • Long press the switch button on the Receiver for 3-5 seconds to turn it on. The indicator light will turn red.
   • Connect the Receiver to your monitor, TV, or projector via the HDMI to HDMI cable.
   • Alternatively, connect the Receiver to AR glasses or portable monitors via the USB-C to USB-C cable.
3. कनेक्शनची वाट पहा:
   • The Transmitter and Receiver are pre-paired at the factory. They will automatically pair within 10 seconds after being connected and powered on.
   • Ensure the TX and RX antennas face each other for the strongest signal. There must be no obstruction between TX and RX.
   • A blue indicator light on the Receiver indicates pairing is in progress.
   • A green indicator light on the Receiver means the connection is established.

सुसंगतता

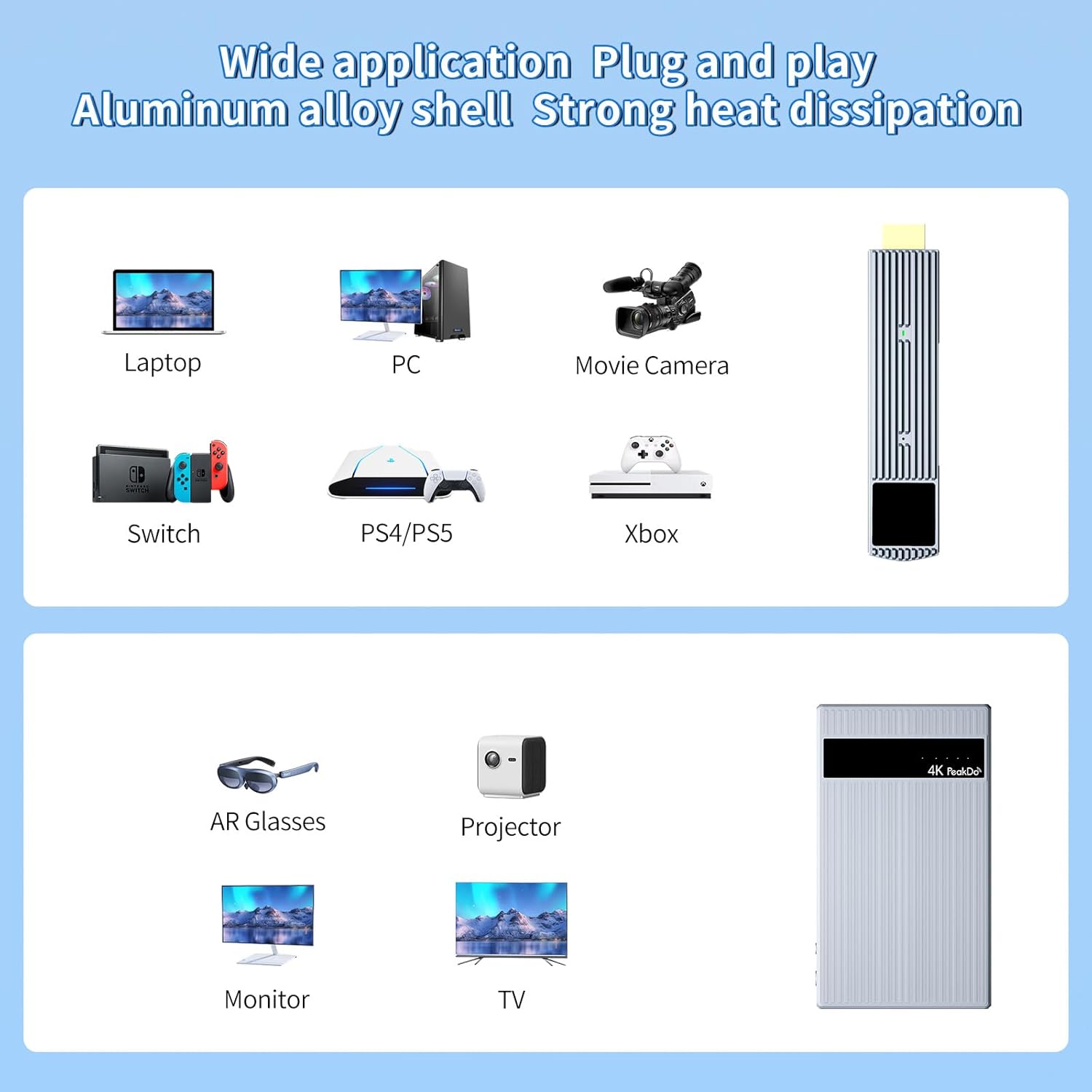

Image: A visual representation of compatible input devices (laptops, PCs, cameras, Switch, PS4/PS5, Xbox) and output devices (AR glasses, projectors, monitors, TVs).

The PeakDo Wireless HDMI system offers broad compatibility:

• Transmitter (TX) Compatible Devices: PS5/4, Xbox, Switch, PC, Laptop, Camera, and any other device with an HDMI output.
• Receiver (RX) Compatible Devices: Monitors, TVs, Projectors (via HDMI), XREAL Air (formerly Nreal Air), Rokid Max/Air, RayNeo, VITURE One AR glasses, and portable monitors (via USB-C 3.1).

टीप: When connecting the transmitter to a PC, ensure you plug the USB-C cable directly into the PC, not a USB hub, for optimal performance.

ऑपरेटिंग सूचना

Once connected, the PeakDo Wireless HDMI system operates automatically. Here are some usage scenarios and important notes:

सामान्य ऑपरेशन

• प्लग-अँड-प्ले: The system is designed for plug-and-play operation, requiring no Wi-Fi connection or software installation.
• Mirror and Extend Modes: Supports both mirror and extend display modes, allowing for flexible use with your connected devices.
• स्वयंचलित जोडणी: TX and RX units automatically pair upon power-up if they are within range and unobstructed.

Using with AR Glasses and Portable Monitors

Image: A person wearing AR glasses and connected to the PeakDo Receiver, relaxing on a couch and viewing content wirelessly.

Image: A man comfortably seated in a chair, wearing AR glasses connected to the PeakDo Receiver, enjoying content wirelessly.

• The Receiver has a built-in 7000 mAh battery, capable of powering AR glasses and portable monitors under 10W for 3-5 hours.
• For portable monitors requiring over 10W, an external power supply is necessary.

Gaming and Large Screen Viewing

Image: Two individuals playing video games on a large television screen, with the PeakDo Wireless HDMI system connected to a laptop, demonstrating wireless display for gaming.

Image: A man playing a video game on a large television, with the PeakDo Wireless HDMI system connected to a gaming console, illustrating a wireless gaming setup.

• The 60GHz millimeter wave technology ensures ultra-low latency (<2.5ms), making it suitable for fast-paced gaming and live sports.
• Supports 4K@30Hz, 1080P@60Hz, and 1080P@120Hz output. Note: Only supports 1080P@60Hz when connected to PS4 or PS5.

प्रसारण श्रेणी

Image: An illustration demonstrating the maximum transmission range of up to 100 feet within a single room without physical barriers between the transmitter and receiver.

• The wireless HDMI extender kit supports up to 100ft wireless transmission range.
• महत्त्वाची सूचना: The signal cannot pass through walls or significant obstructions. For optimal performance, ensure a clear line of sight between the Transmitter and Receiver in the same room.

देखभाल

Proper maintenance ensures the longevity and optimal performance of your PeakDo Wireless HDMI system.

• स्वच्छता: Use a soft, dry cloth to clean the surfaces of the Transmitter and Receiver. Avoid using liquid cleaners or aerosols.
• उष्णता नष्ट होणे: Both units are made of durable aluminum alloy for efficient heat dissipation. It is normal for the product surface to become warm during operation.
• थंड करणे: If you are concerned about the operating temperature during extended use, consider using a cooling dock (sold separately) for effective cooling.


Image: The PeakDo Wireless HDMI Receiver connected to a display, alongside an optional cooling dock designed to enhance heat dissipation.

• स्टोरेज: When not in use for extended periods, press the switch button on the Receiver for 3-5 seconds to turn off the power. Store the devices in a cool, dry place away from direct sunlight and extreme temperatures.

समस्यानिवारण

If you encounter issues with your PeakDo Wireless HDMI system, refer to the following common problems and solutions:

तपशील

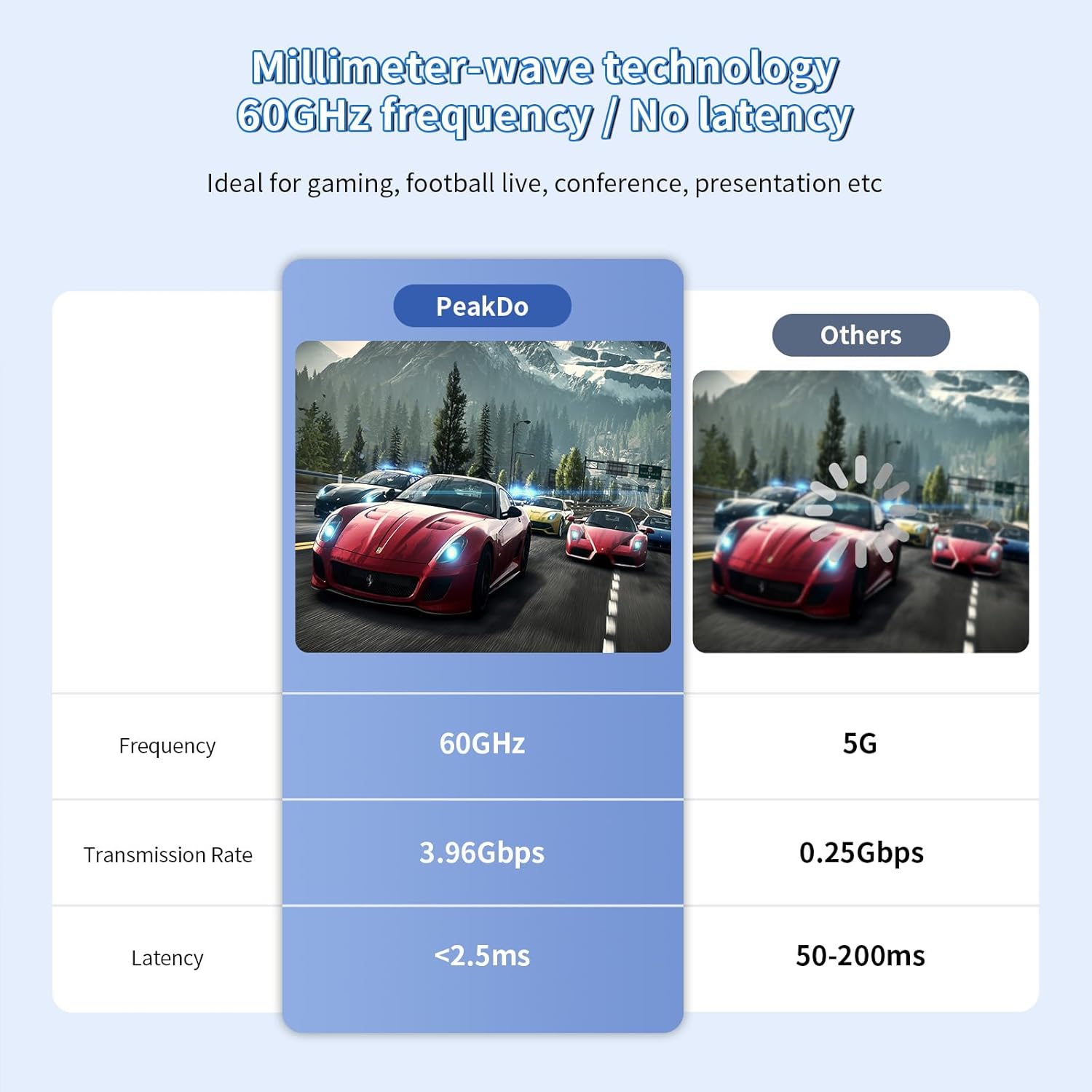

Image: A comparison chart highlighting PeakDo's 60GHz frequency, 3.96Gbps transmission rate, and <2.5ms latency against other technologies.

हमी आणि समर्थन

For warranty information and technical support, please refer to the following:

• हमी: Specific warranty details are typically provided with your purchase documentation. Please retain your proof of purchase for warranty claims.
• ग्राहक समर्थन: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact PeakDo customer support through their official webसाइट किंवा तुम्ही उत्पादन खरेदी केलेल्या किरकोळ विक्रेत्याशी संपर्क साधा.
• ऑनलाइन संसाधने: Visit the official PeakDo store on Amazon for additional product information and updates: PeakDo Amazon Store.
