SHALL Portable Car Jump Starter and Air Compressor

परिचय

This manual provides detailed instructions for the safe and effective use of your SHALL Portable Car Jump Starter with Air Compressor. This multi-functional device combines a car jump starter, tire inflator, tire pressure detector, emergency light, and power bank into one portable unit. Please read this manual thoroughly before operation and retain it for future reference.

Image: The SHALL Portable Car Jump Starter and Air Compressor, showcasing its compact design and various ports.

सुरक्षितता माहिती

उपकरणाला दुखापत किंवा नुकसान टाळण्यासाठी नेहमी खालील सुरक्षा खबरदारी पाळा:

• पाऊस किंवा ओल्या स्थितीत डिव्हाइस उघड करू नका.
• Do not operate the device if it has been dropped or damaged.
• मुलांच्या आवाक्याबाहेर ठेवा.
• वापर आणि चार्जिंग दरम्यान योग्य वायुवीजन सुनिश्चित करा.
• Do not disassemble the unit. Refer all servicing to qualified personnel.
• Avoid short-circuiting the jump starter clamps.
• Do not use the air compressor continuously for extended periods without allowing it to cool down.
• The device incorporates 9 safety features including protection against short circuits, over-temperature, over-charge, and over-discharge.

Image: Diagram illustrating the 9 safety protection features of the device, including reverse polarity, short circuit, over-charge, over-discharge, over-temperature, low temperature, reverse charge, over current, and low voltagई संरक्षण.

सेटअप

पॅकेज सामग्री

पॅकेजमध्ये सर्व वस्तू आहेत का ते तपासा:

• Car Jump Starter (1 unit)
• Booster Cable Clamp (1 संच)
• Air Tube (1 unit)
• Ball Inflation Needle (1 unit)
• Swimming Ring Nozzle (1 unit)
• Cigarette Lighter Interface Cable (1 unit)
• Nozzle (2 units)
• Type-C Charge Cable (1 unit)
• वापरकर्ता मॅन्युअल (1 युनिट)

Image: The product packaging, showing the SHALL brand and key features like start, mobile power, lighting, air pump, electricity display, and emergency power start.

Image: The back of the product box, detailing product features and specifications including model number SH112013 and UPC 762983170926.

Image: The side of the product box, displaying manufacturer information and compliance marks like CE, FC, and RoHS.

उत्पादन संपलेview

Familiarize yourself with the components and controls of the device:

प्रतिमा: एक षटकview of the SHALL Car Jump Starter with Air Compressor, highlighting its multi-functionality.

Image: A detailed diagram showing the device's display, buttons (Power Switch, Switch Vehicle Mode, Switch Units, Increase/Decrease Pressure), and ports (USB output, Type-C input, LED lighting, Inflator interface, Start output port).

डिव्हाइस चार्ज करत आहे

Before first use, fully charge the jump starter. It is recommended to recharge the device every 3 months to maintain battery health, especially during long standby periods (up to one year).

1. Connect the provided Type-C charge cable to the device's Type-C input port.
2. Connect the other end of the Type-C cable to a suitable USB power adapter (not included) or a car cigarette lighter interface cable.
3. The display will indicate charging status. Charge until the battery indicator shows full.

ऑपरेटिंग सूचना

वाहन सुरू करत जा

This jump starter is designed for 12V vehicles with up to 5.0L gas or 3.0L diesel engines. It operates effectively in temperatures from -4°F to 140°F (-20°C to 60°C).

1. Cl कनेक्ट कराamps: लाल (+) cl कनेक्ट कराamp to the positive terminal of the vehicle battery and the black (-) clamp नकारात्मक टर्मिनलला.
2. Connect to Jump Starter: Insert the booster cable clamp connector into the jump starter's dedicated output port. Ensure a secure connection.
3. इंजिन सुरू करा: Enter the vehicle and start the engine. If the engine does not start immediately, wait 30 seconds before attempting again. Do not crank for more than 3 seconds per attempt.
4. Cl काढाamps: Once the vehicle starts, immediately remove the booster cable clamp from the jump starter, then disconnect the black (-) clamp from the vehicle battery, followed by the red (+) clamp.

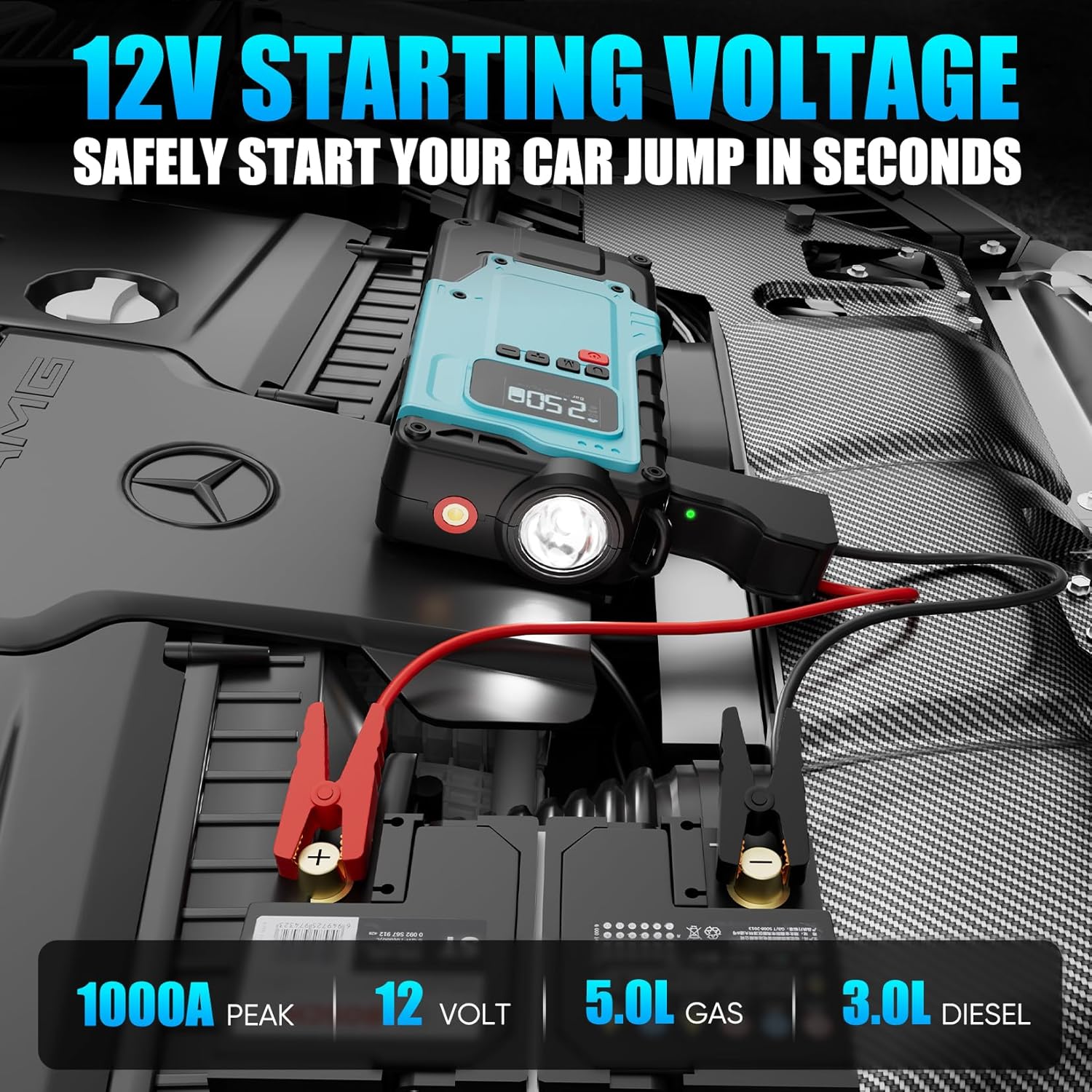

Image: The jump starter connected to a car battery, illustrating the process of safely starting a vehicle.

Image: A visual guide showing the four steps to jump start a car: connect positive/negative terminals, connect cable clip to jump starter, start engine, and remove clamps.

Image: A chart indicating the jump starter's compatibility with various engine displacements for gas and diesel vehicles.

एअर कंप्रेसर वापरणे

The integrated air compressor can inflate tires up to 150 PSI and is suitable for various items including car tires, bicycle tires, motorcycle tires, swimming rings, kayaks, and most balls. It features real-time pressure detection and preset inflation functions.

1. Connect Air Tube: Attach the detachable air tube to the inflator port on the device. Select the appropriate nozzle adapter for the item to be inflated and connect it to the air tube.
2. पॉवर चालू करा आणि मोड निवडा: Turn on the device. Use the "Switch Vehicle Mode" button to select the desired inflation mode (e.g., car, motorcycle, bicycle, ball).
3. दाब समायोजित करा: Use the "+" and "-" buttons to set the target pressure. The LCD display will show the current and target pressure. You can also switch units (Bar, Psi, Kpa, Kg/cm²) using the "Switch Units" button.
4. महागाई सुरू करा: Connect the nozzle to the item's valve. Long press the start button to begin inflation. The compressor will automatically stop once the preset pressure is reached.
5. सतत शक्ती: For prolonged inflation tasks, connect the device to your car's cigarette lighter using the provided interface cable for continuous and stable power.

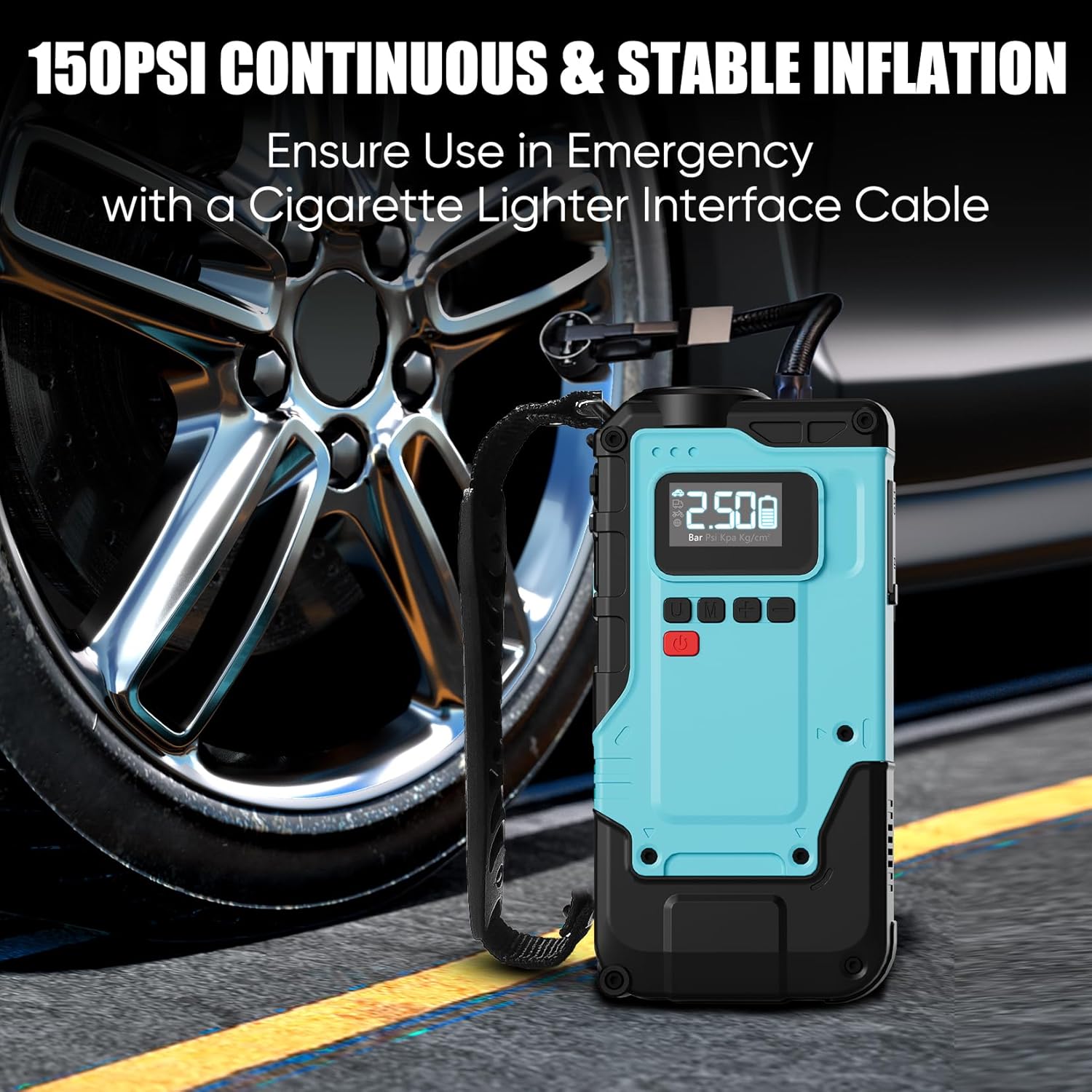

Image: The device's air compressor connected to a car tire, demonstrating its inflation capability.

Image: A visual guide showing the four steps to inflate a tire: connect air tube, start machine and select mode, adjust pressure, and connect nozzle to start inflation.

प्रतिमा: उदाamples of items that can be inflated with the air compressor, including motorcycles, bicycles, balls, and kayaks, along with various nozzle adapters.

पॉवर बँक म्हणून वापरणे

The device can serve as a power bank to charge your digital devices.

• Connect your device's charging cable to the USB output port (5V/2A) on the jump starter.
• The jump starter will begin charging your device.

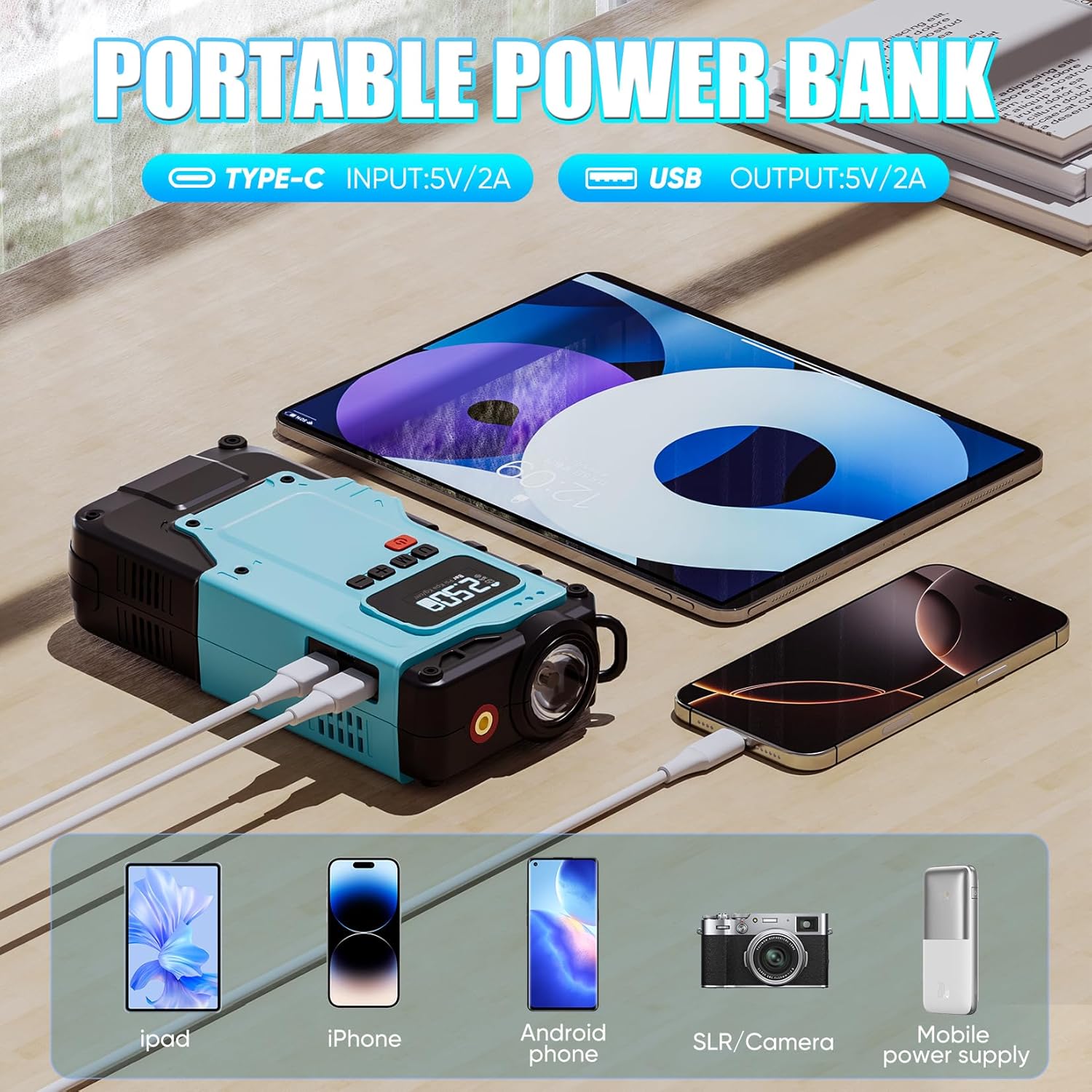

Image: The jump starter functioning as a power bank, charging an iPad, iPhone, and Android phone via its USB output port.

Image: A visual representation of the portable power bank feature, showing Type-C input (5V/2A) and USB output (5V/2A) for charging various electronic devices.

आपत्कालीन प्रकाश

The device includes an emergency light with multiple modes.

• Press the light button to cycle through modes: Flashlight (steady on), Strobe Light, and SOS Light.
• प्रकाश बंद करण्यासाठी पुन्हा दाबा.

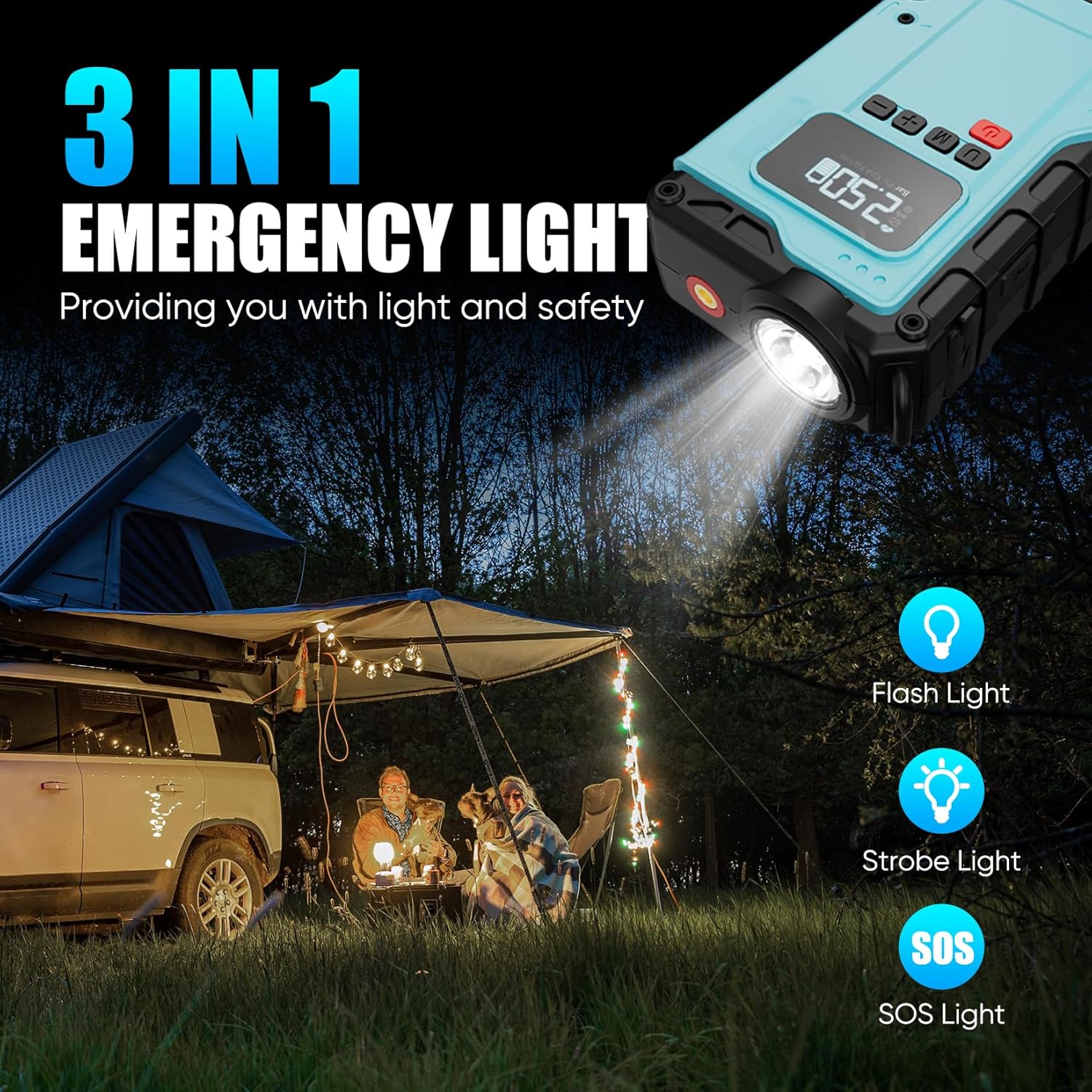

Image: The device's emergency light illuminating a campsite, demonstrating its flashlight, strobe, and SOS light functions.

Image: A visual representation of the 3-in-1 emergency light feature, highlighting flashlight, strobe light, and SOS light modes.

देखभाल

• कोरड्या, मऊ कापडाने उपकरण स्वच्छ करा. अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स वापरू नका.
• थेट सूर्यप्रकाश आणि अति तापमानापासून दूर थंड, कोरड्या जागी डिव्हाइस साठवा.
• Recharge the device at least once every three months to maintain optimal battery performance, even if not in use.
• Inspect cables and clamps for any damage before each use.

समस्यानिवारण

तपशील

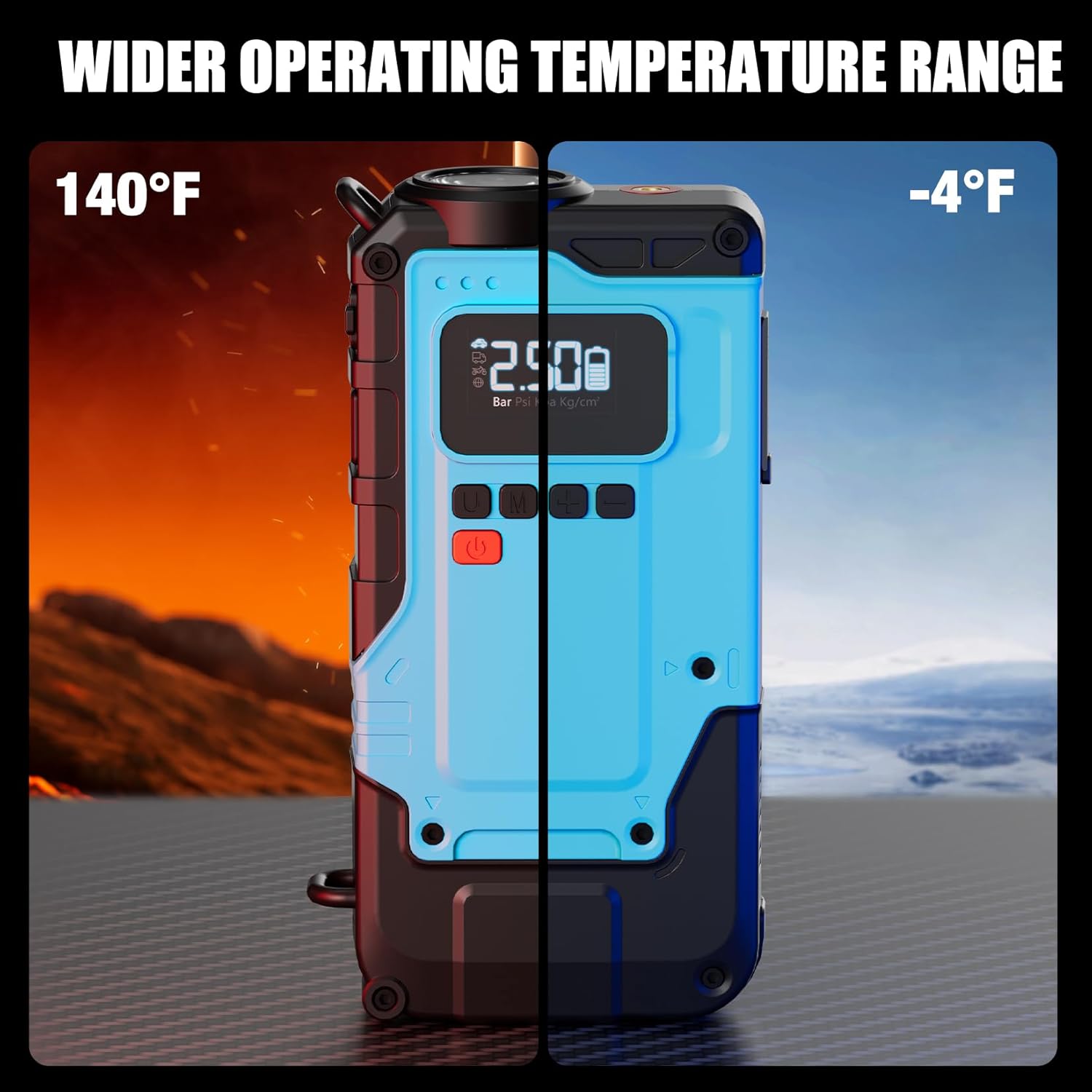

Image: The device operating effectively across a wide temperature range, from -4°F to 140°F.

हमी आणि समर्थन

For warranty information or technical support, please contact the manufacturer or your retailer. Keep your purchase receipt as proof of purchase.

Manufacturer: Zhejiang Hangshuai Technology Co., Ltd

UPC: 762983170926
