Aiwa AW-KF4 Portable Bluetooth Speaker User Manual

परिचय

This manual provides essential instructions for the safe and efficient use of your Aiwa AW-KF4 Portable Bluetooth Speaker. Please read this manual thoroughly before using the product and retain it for future reference.

The Aiwa AW-KF4 is a portable Bluetooth speaker designed for robust audio performance with dynamic LED lighting, a rechargeable battery, and resistance to water and dust (IPX6). It offers versatile connectivity options including Bluetooth, USB, and AUX input.

पॅकेज सामग्री

Carefully unpack your speaker and ensure all items are present and in good condition. If any items are missing or damaged, please contact your retailer.

Aiwa AW-KF4 Portable Bluetooth Speaker
USB-C चार्जिंग केबल
सूचना पुस्तिका

Image: The Aiwa AW-KF4 speaker in its retail packaging, showing the speaker and branding.

उत्पादन संपलेview

The Aiwa AW-KF4 speaker features a compact, cylindrical design with integrated controls and dynamic LED lighting. It is built for portability and durability.

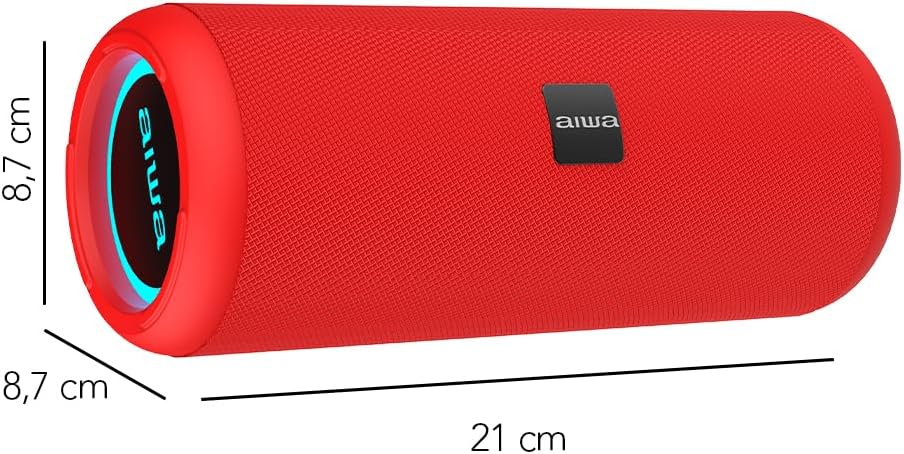

Image: A red Aiwa AW-KF4 speaker showing its approximate dimensions: 21 cm in length and 8.7 cm in diameter.

Aiwa AW-KF4 speaker highlighting features like 20W output, LED light, TWS, IPX6, Bluetooth, USB, SD card

Image: Two Aiwa AW-KF4 speakers (red and black) illustrating key features: 20W output, LED lighting, TWS function, IPX6 water resistance, Bluetooth, USB, and SD card compatibility.

Aiwa AW-KF4 speaker features: IPX6, 10-hour battery, hands-free calling

Image: A collage showing the Aiwa AW-KF4 speaker in various outdoor settings, emphasizing its IPX6 water resistance, up to 10 hours of battery life, and hands-free calling capability with an integrated microphone.

सेटअप

१. सभापतीला शुल्क आकारणे

Before first use, fully charge the speaker. Use the provided USB-C cable to connect the speaker to a compatible USB power adapter (not included) or a computer's USB port.

चार्जिंग दरम्यान चार्जिंग इंडिकेटर लाइट प्रकाशित होईल.
पूर्ण चार्ज होण्यासाठी अंदाजे 3 तास लागतात.
Once fully charged, the indicator light may change or turn off.

A fully charged battery provides up to 10 hours of playback, depending on volume level and usage.

2. पॉवर चालू/बंद

To power on: Press and hold the Power button for a few seconds until you hear an audible prompt and the LED lights activate.
To power off: Press and hold the Power button for a few seconds until you hear an audible prompt and the LED lights turn off.

ऑपरेटिंग सूचना

1. ब्लूटूथ पेअरिंग

The speaker will automatically enter Bluetooth pairing mode when powered on for the first time or if no device is connected. The LED indicator will flash, indicating it's ready to pair.

स्पीकर चालू आहे आणि पेअरिंग मोडमध्ये आहे याची खात्री करा.
Enable Bluetooth on your smartphone, tablet, or other audio device.
साठी शोधा "AW-KF4" in the list of available Bluetooth devices.
Select "AW-KF4" to connect. You will hear a confirmation sound once paired.
The LED indicator will stop flashing and remain solid.

या स्पीकरची ब्लूटूथ रेंज १० मीटर (३३ फूट) पर्यंत आहे.

७. ट्रू वायरलेस स्टीरिओ (TWS) फंक्शन

The TWS function allows you to pair two Aiwa AW-KF4 speakers together for a stereo sound experience.

Image demonstrating TWS function with two Aiwa AW-KF4 speakers

Image: A visual representation of the TWS (True Wireless Stereo) function, showing two Aiwa AW-KF4 speakers being used together for synchronized sound.

Ensure both AW-KF4 speakers are powered on and not connected to any Bluetooth device.
On one speaker (this will be the primary speaker), press and hold the TWS button (if available, or a designated button as per specific model instructions) until you hear a pairing tone.
दोन्ही स्पीकर्स आपोआप एकमेकांशी कनेक्ट होतील. कनेक्ट झाल्यानंतर एक पुष्टीकरण टोन वाजेल.
Now, connect your Bluetooth device to the primary speaker as described in the "Bluetooth Pairing" section.

Note: Refer to the specific button layout on your speaker for the exact TWS pairing button.

२.४. USB आणि AUX प्लेबॅक

यूएसबी प्लेबॅक: ऑडिओ असलेली USB फ्लॅश ड्राइव्ह घाला files into the USB port. The speaker will automatically detect and begin playing music from the drive.
ऑक्स प्लेबॅक: Connect an audio device using a 3.5mm AUX cable (not included) to the AUX input port. The speaker will switch to AUX mode.

4. एलईडी दिवे

The speaker features dynamic LED lights. These lights typically activate automatically when the speaker is powered on. Specific controls for changing light modes or turning them off may be available via a dedicated button on the speaker (refer to your speaker's button layout).

5. नियंत्रणे

The speaker features tactile controls for various functions:

पॉवर बटण: पॉवर चालू/बंद करण्यासाठी दाबा आणि धरून ठेवा.
प्ले/पॉज बटण: संगीत प्ले करण्यासाठी किंवा विराम देण्यासाठी दाबा.
आवाज वाढवा/पुढील ट्रॅक: आवाज वाढवण्यासाठी दाबा. पुढील ट्रॅकसाठी दाबा आणि धरून ठेवा.
आवाज कमी/मागील ट्रॅक: आवाज कमी करण्यासाठी दाबा. मागील ट्रॅकसाठी दाबा आणि धरून ठेवा.
मोड बटण: Press to switch between Bluetooth, USB, and AUX modes.
Call Button (if applicable): Press to answer/end calls. Press and hold to reject calls.

Note: Button functions may vary slightly. Consult the diagrams in your physical manual for precise button identification.

देखभाल

To ensure the longevity and optimal performance of your Aiwa AW-KF4 speaker, follow these maintenance guidelines:

स्वच्छता: स्पीकरचा बाह्य भाग स्वच्छ करण्यासाठी मऊ, कोरडा कापड वापरा. अपघर्षक क्लीनर, सॉल्व्हेंट्स किंवा कठोर रसायने वापरू नका.
पाणी प्रतिकार (IPX6): The speaker is resistant to strong water jets. It is not designed for submersion. Ensure all port covers are securely closed before exposing the speaker to water or dust. After exposure to water, wipe the speaker dry before charging.
स्टोरेज: स्पीकर थेट सूर्यप्रकाश आणि अति तापमानापासून दूर थंड, कोरड्या जागी ठेवा.
बॅटरी काळजी: To preserve battery life, charge the speaker regularly, even if not in frequent use. Avoid fully discharging the battery for extended periods.

Aiwa AW-KF4 speaker near a pool, demonstrating IPX6 water resistance

Image: The Aiwa AW-KF4 speaker positioned near a pool, illustrating its IPX6 water resistance feature, suitable for outdoor and poolside use.

समस्यानिवारण

जर तुम्हाला तुमच्या स्पीकरमध्ये समस्या येत असतील, तर खालील सामान्य समस्या आणि उपाय पहा:

समस्या	संभाव्य कारण / उपाय
स्पीकर चालू होत नाही.	बॅटरी संपली आहे. स्पीकर पूर्णपणे चार्ज करा. Power button not pressed long enough. Press and hold for a few seconds.
ब्लूटूथ द्वारे पेअर करू शकत नाही.	Speaker is not in pairing mode. Power cycle the speaker. Bluetooth is off on your device. Enable Bluetooth. Speaker is already connected to another device. Disconnect from other devices. Device is out of range. Move your device closer to the speaker (within 10 meters).
आवाज नाही.	Volume is too low on the speaker or connected device. Increase volume. Speaker is not properly connected (Bluetooth, USB, AUX). Re-establish connection. Incorrect mode selected. Press the Mode button to cycle through inputs.
ध्वनी विकृती.	Volume is too high. Reduce volume on the speaker or connected device. Low battery. Charge the speaker. Device is too far from the speaker (Bluetooth). Move closer.
TWS पेअरिंग अयशस्वी.	Ensure both speakers are AW-KF4 models and not connected to any other Bluetooth device. Ensure both speakers are within close proximity to each other. Try powering both speakers off and on again, then re-attempt TWS pairing.

तपशील

मॉडेलचे नाव	AW-KF4 (AWKF4B)
ब्रँड	आयवा
स्पीकर आउटपुट पॉवर	20 वॅट्स आरएमएस
वारंवारता प्रतिसाद	80 Hz (minimum specified)
कनेक्टिव्हिटी तंत्रज्ञान	ब्लूटूथ ५.०, यूएसबी, ऑक्स
ऑडिओ आउटपुट मोड	स्टिरिओ
गृहनिर्माण साहित्य	प्लास्टिक
स्पीकरचा प्रकार	वूफर
पाणी प्रतिकार पातळी	IPX6 (Resistant to strong water jets)
ब्लूटूथ श्रेणी	10 मीटर (33 फूट) पर्यंत
मायक्रोफोन	1 (for hands-free calling)
बॅटरी क्षमता	2000 mAh लिथियम आयन
बॅटरी आयुष्य	२४ तासांपर्यंत (व्हॉल्यूम आणि वापरानुसार बदलते)
चार्जिंग वेळ	अंदाजे 3 तास
इनपुट व्हॉल्यूमtage	5 व्होल्ट
प्रतिबाधा	4 ओम
नियंत्रण पद्धत	Tactile Buttons
परिमाण (L x D)	अंदाजे १७ सेमी x ७.२ सेमी
सुसंगत साधने	स्मार्टफोन, टॅब्लेट
मूळ	चीन

हमी आणि समर्थन

Your Aiwa AW-KF4 Portable Bluetooth Speaker comes with a २ वर्षांची उत्पादकाची वॉरंटी खरेदीच्या तारखेपासून. ही वॉरंटी सामान्य वापरात उत्पादन दोषांना कव्हर करते.

वॉरंटी कव्हर करत नाही:

Damage caused by misuse, abuse, negligence, or accident.
अनधिकृत दुरुस्ती किंवा सुधारणांमुळे होणारे नुकसान.
सामान्य झीज.

For warranty claims or technical support, please contact your retailer or the official Aiwa customer service in your region. Please have your proof of purchase and product model number (AW-KF4) ready when contacting support.

Aiwa AWKF4B
