1. परिचय
Thank you for choosing the PATIKIL Soft Shutter Release Button. This accessory is designed to enhance your photography experience by providing a comfortable and stable shutter release for your camera. Made from pure copper with a silver finish, these buttons are compatible with most cameras featuring an M3*0.5 tapered thread.
पॅकेज सामग्री:
- 3 x Soft Shutter Release Buttons (Silver Tone)
- 3 x Rubber O-rings

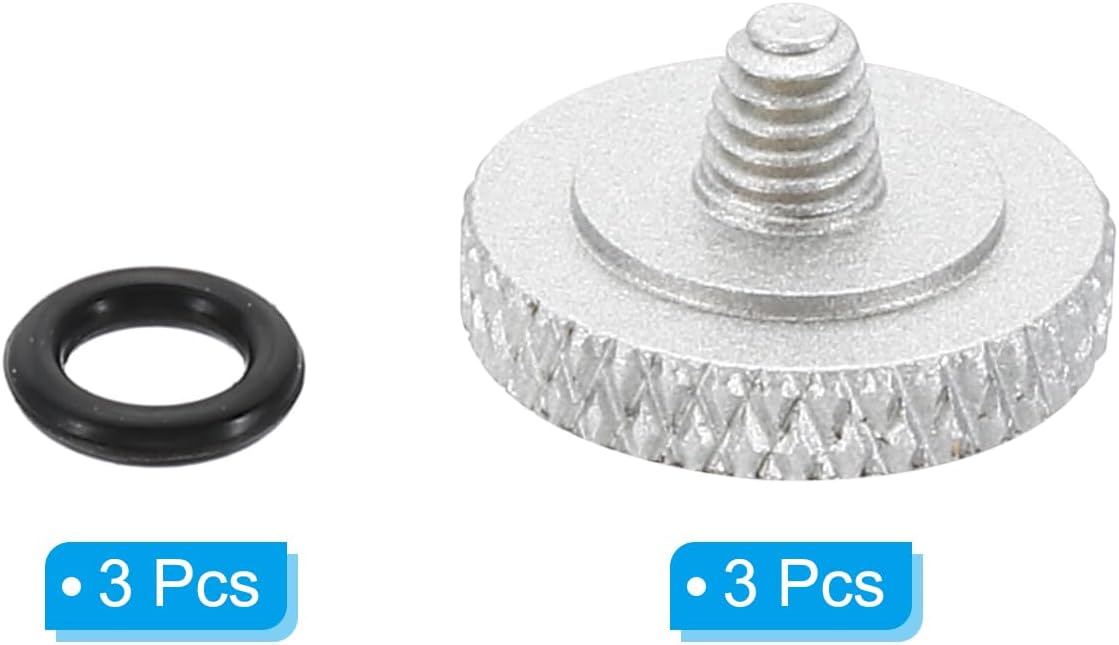

Image 1.1: Package contents showing three buttons and three O-rings.
2. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| रंग | Silver Tone |
| साहित्य | शुद्ध तांबे |
| Thread Dimensions | M3*0.5 |
| Total Dimensions (D*H) | 11.5 x 6 मिमी / 0.45 x 0.23 इंच |
| समाप्त करा | High-end, CNC cut |
Image 2.1: Detailed dimensions of the shutter release button.
3. सेटअप आणि स्थापना
The PATIKIL Soft Shutter Release Button is designed for easy installation on compatible cameras.
- सुसंगतता तपासा: Before installation, verify that your camera's shutter release button features an M3*0.5 tapered thread. This accessory is specifically designed for this thread type.
- Prepare the Button: Place one of the provided rubber O-rings onto the threaded shaft of the shutter release button. This O-ring provides cushioning and stability, helping to prevent the button from loosening or causing camera shake.
Image 3.1: Shutter release button with O-ring installed.
- Install on Camera: Carefully screw the button clockwise into the threaded hole of your camera's shutter release.
- सुरक्षितपणे घट्ट करा: Apply slight pressure while tightening to ensure the button is seated correctly and securely. Avoid overtightening, but ensure it is firm enough to prevent accidental detachment during use.
Image 3.2: Illustrates the installation point on a camera, highlighting the tapered thread compatibility.
4. ऑपरेटिंग सूचना
Once installed, the PATIKIL Soft Shutter Release Button provides a comfortable and stable point of contact for activating your camera's shutter.
- Gently press the concave surface of the button to activate the camera's shutter.
- The soft touch and ergonomic design aim to reduce finger fatigue and minimize camera shake, contributing to sharper images.
प्रतिमा ५.२: उदा.amples of the shutter release button installed on cameras.
5. देखभाल
The PATIKIL Soft Shutter Release Button requires minimal maintenance.
- Keep the button clean by wiping it with a soft, dry cloth.
- Periodically check the tightness of the button to ensure it remains securely attached to your camera.
- Inspect the rubber O-ring for any signs of wear or damage. Replace if necessary to maintain optimal cushioning and stability.
6. समस्या निवारण
If you encounter any issues with your shutter release button, consider the following:
- Button feels loose: Ensure the button is screwed in clockwise and tightened with slight pressure. The rubber O-ring should be in place to provide a snug fit.
- Button does not fit: Double-check that your camera's shutter release has an M3*0.5 tapered thread. This button is not universally compatible with all camera models.
- Button falls off: This can occur if the button is not tightened sufficiently or if the O-ring is missing or damaged. Reinstall with a new O-ring if needed and ensure proper tightening.
Important. महत्त्वपूर्ण नोट्स
- This product is designed for cameras with an M3*0.5 tapered thread on their shutter release mechanism. Please verify your camera's compatibility before use.
- The button is made of pure copper and finished in silver tone, providing a durable and aesthetically pleasing accessory for your camera.
