1. परिचय
Thank you for choosing the DEWENWILS Remote Control Outlets with Wireless Wall Switch. This product provides a convenient and energy-efficient way to control your indoor lighting and other electronic devices remotely. Please read this manual carefully before use to ensure proper installation and operation.
2. सुरक्षितता माहिती
- The DEWENWILS remote control outlets are constructed from high-quality flame-retardant material, ensuring maximum safety for domestic use.
- The product is designed to operate safely within a temperature range of -25°C to 40°C.
- Integrated child safety features prevent accidental contact with live parts.
- Do not exceed the maximum load capacity of 2300W or 10A.
- Ensure the product is used in dry indoor environments only.
- साफ करण्यापूर्वी नेहमी डिव्हाइसला पॉवर आउटलेटमधून अनप्लग करा.
Image: The remote control outlet is designed for safe operation in temperatures ranging from -25°C to 40°C, highlighting its durability.
Image: A child reaching for an outlet, with a shield icon indicating the integrated child safety mechanism to prevent accidental contact.
3. पॅकेज सामग्री

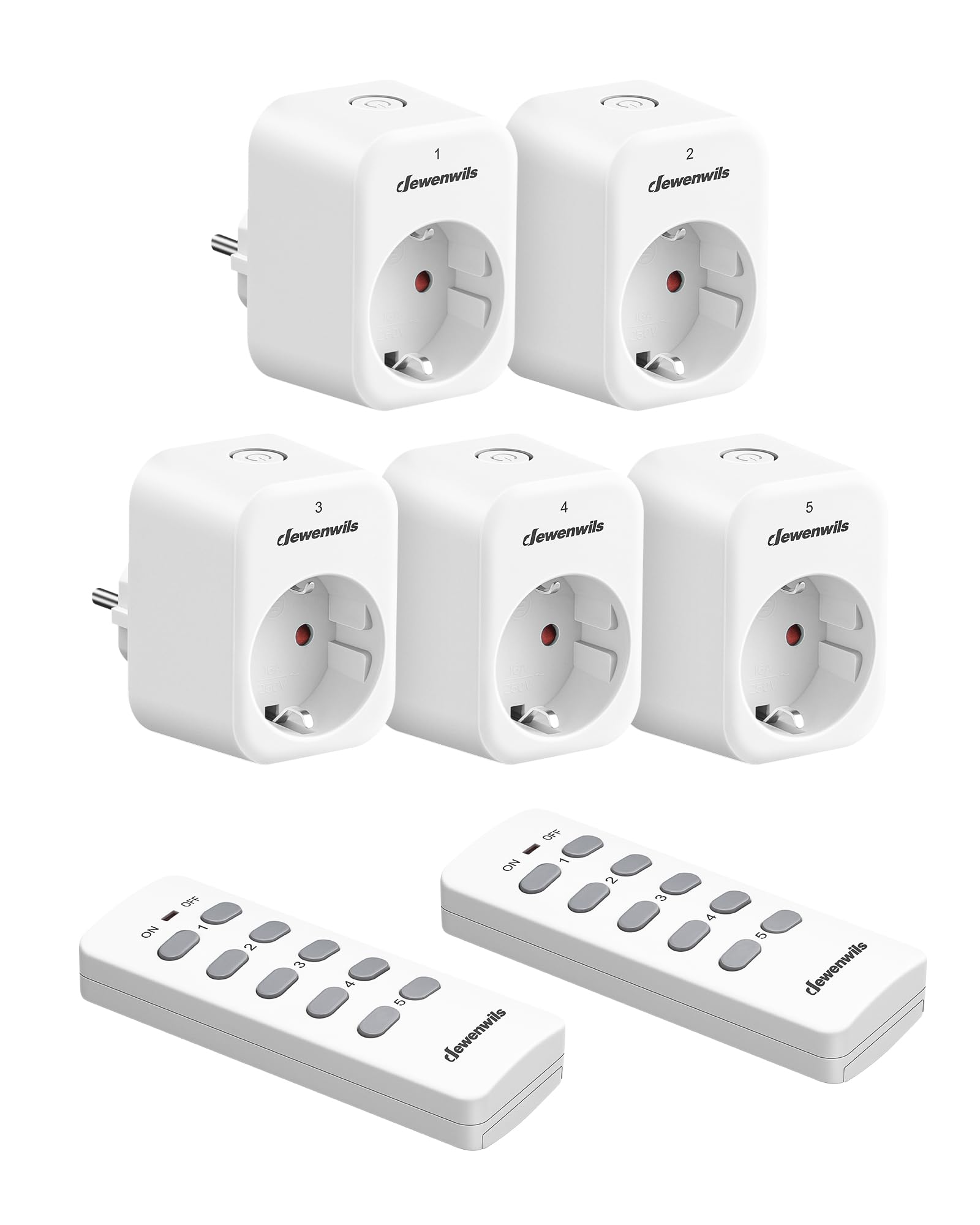

Your DEWENWILS Remote Control Outlet kit typically includes:
- Remote Control Outlet(s)
- Remote Control(s) (battery included)
- Wireless Wall Switch(es) (quantity may vary by package)
- वापरकर्ता मॅन्युअल
Image: A DEWENWILS remote control outlet plugged into a wall socket next to a white remote control, illustrating the primary components of the kit.
4. उत्पादनाची वैशिष्ट्ये
- Self-Learning Function: Additional portable remote controls and outlets can be paired (only with the same model). The manual transmitter and radio receiver are pre-programmed for immediate use.
- प्लग आणि प्ले: Easy installation with no programming or tools required. Batteries are included for the remote controls.
- ऊर्जा बचत: Eliminates complex standby power consumption, reducing energy use. The outlet remains off after a power outage to save energy. Standby power consumption is only 0.6W.
- 30m Range: The powerful RF signal operates through walls and doors without interference, offering up to 30 meters (100 feet) range in open air without obstacles. Operating frequency is 433.92 MHz.
- वायरलेस नियंत्रण: Conveniently turn on or off indoor lighting (e.g., Christmas lights, plug-in pendant lights), hard-to-reach electronic installations, and other electronic devices with the press of a button.
प्रतिमा: एक हवाई view of a house showing the 30-meter RF range of the remote control, indicating its ability to control devices across multiple rooms and through walls.
Image: A person comfortably using the remote control from a sofa to operate a lamp plugged into a DEWENWILS outlet, demonstrating ease of use.
Image: Multiple DEWENWILS outlets plugged into wall sockets near a TV, with a remote control in hand, illustrating the programmable and expandable nature of the system.
Image: A collage showing various household appliances like a microwave, TV, table lamp, humidifier, laptop, and fan, indicating the 10A max 2300W capacity and wide compatibility of the outlets.
Image: A collage depicting elderly individuals, a person in a wheelchair, and a pregnant woman using the remote control outlets, emphasizing the convenience and accessibility for various users.
5. सेटअप
The DEWENWILS Remote Control Outlets are designed for simple Plug & Play installation.
5.1 Initial Setup (Pre-programmed)
- Unpack the remote control outlet(s) and remote control(s).
- Plug the remote control outlet into a standard wall socket.
- Plug your desired appliance (e.g., lamp, fan) into the remote control outlet.
- The remote control and outlet are pre-programmed. Press the corresponding ON/OFF button on the remote to control the appliance.
5.2 Pairing Additional Remotes or Outlets (Self-Learning)
If you wish to pair additional DEWENWILS remote controls or outlets (of the same model) or re-pair existing ones, follow these steps:
- Plug the remote control outlet into a wall socket.
- Press and hold the learning button on the side of the outlet (or the small button on the front, depending on the model) until the indicator light starts flashing.
- Within 5 seconds, press the desired ON or OFF button on the remote control you wish to pair.
- The indicator light on the outlet will stop flashing and remain solid for a moment, then turn off, indicating successful pairing.
- Test the connection by pressing the ON/OFF button on the remote.
6. ऑपरेटिंग सूचना
Operating your DEWENWILS remote control outlets is straightforward:
- रिमोट कंट्रोल वापरणे: Each button pair (1-5) on the remote corresponds to a specific channel. Press the 'ON' button for the desired channel to turn on the connected appliance. Press the 'OFF' button for the desired channel to turn off the connected appliance.
- Using the Wireless Wall Switch (if applicable): If your kit includes a wireless wall switch, it functions similarly to the remote control. Press the 'ON' or 'OFF' button on the switch to control the paired outlet.
- मॅन्युअल नियंत्रण: Most outlets also feature a manual ON/OFF button directly on the unit for local control.
7. देखभाल
7.1 स्वच्छता
To clean the remote control outlets and remote controls:
- Ensure all devices are unplugged from the power source.
- Wipe surfaces with a soft, dry cloth. Do not use liquid cleaners or sprays.
६.३ रिमोट कंट्रोल बॅटरी रिप्लेसमेंट
If the remote control's range decreases or it stops responding, the battery may need replacement.
- रिमोट कंट्रोलच्या मागील बाजूस बॅटरी कंपार्टमेंट शोधा.
- कंपार्टमेंट कव्हर उघडा.
- Remove the old battery and insert a new one of the same type (typically CR2032 or similar, check the remote for specifics), ensuring correct polarity.
- बॅटरी कंपार्टमेंट बंद करा.
8. समस्या निवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| आउटलेट रिमोटला प्रतिसाद देत नाही. | Battery in remote is dead or weak. Outlets and remote are not paired. Appliance is not plugged in or is faulty. | Replace remote battery. Re-pair the outlet and remote (see Section 5.2). Check appliance power. |
| रिमोट कंट्रोल रेंज कमी केली. | Weak remote battery. Excessive interference from other RF devices. Obstacles (thick walls, metal objects). | Replace remote battery. Move the outlet or remote to a different location. Ensure line of sight if possible, though RF works through walls. |
| Outlet does not turn on after power outage. | This is a safety feature to prevent appliances from turning on unexpectedly. | Manually turn on the outlet or use the remote control to activate it. |
| Appliance connected to outlet does not work. | Appliance is faulty. Outlet is off. Power outage. | Test appliance in a different socket. Ensure outlet is switched ON. Check household power supply. |
9. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल क्रमांक | DHRS205M |
| परिमाण (L x W x H) | ३४० x ३३० x ९६० मिमी (३४ x ३३ x ९६ सेमी) |
| वजन | 630 ग्रॅम |
| ऑपरेटिंग मोड | चालु बंद |
| वर्तमान रेटिंग | २.२ अ |
| संचालन खंडtage | 230 व्होल्ट (AC) |
| पॉवर रेटिंग | 2300 वॅट्स |
| स्टँडबाय वीज वापर | 0.6 प |
| कनेक्टर प्रकार | प्लग-इन |
| साहित्य | Plastic (housing), Copper (contact material) |
| नियंत्रण पद्धत | रिमोट कंट्रोल |
| कनेक्टिव्हिटी प्रोटोकॉल | RF (433.92 MHz) |
| वायरलेस श्रेणी | खुल्या हवेत ३० मीटर (१०० फूट) पर्यंत |
| उच्च तापमान रेटिंग | 45 डिग्री सेल्सियस |
| अनुपालन | CE |
Image: A diagram showing the precise dimensions of the DEWENWILS remote control outlet (5.05cm x 4.08cm x 7.00cm) and its accompanying remote control (3.92cm x 1.83cm x 10.5cm).
10. हमी आणि समर्थन
DEWENWILS products are designed for reliability and performance. This product is covered by the manufacturer's standard warranty, which typically covers defects in materials and workmanship under normal use.
- वॉरंटी कालावधी: Please refer to the product packaging or the official DEWENWILS webविशिष्ट वॉरंटी कालावधीसाठी साइट.
- ग्राहक समर्थन: For technical assistance, troubleshooting, or warranty claims, please contact DEWENWILS customer support through the retailer where the product was purchased or visit the official DEWENWILS webसंपर्क माहितीसाठी साइट.
