1. परिचय
This manual provides detailed instructions for the assembly, operation, and maintenance of your Canglan Technology MD-3010II LCD Metal Detector. Please read this manual thoroughly before using the device to ensure proper function and to maximize your metal detecting experience. Keep this manual for future reference.
2. सुरक्षितता माहिती
- खाजगी मालमत्तेचा शोध घेण्यापूर्वी नेहमीच परवानगी घ्या.
- Avoid detecting in areas where underground utilities (cables, pipes) may be present.
- मालमत्तेला इजा किंवा नुकसान टाळण्यासाठी खोदकाम करताना काळजी घ्या.
- Do not expose the control unit to rain or excessive moisture. The search coil is waterproof, but the control unit is not.
- स्थानिक नियमांनुसार बॅटरीची जबाबदारीने विल्हेवाट लावा.
3. पॅकेज सामग्री
पॅकेजमध्ये सर्व घटक आहेत का ते तपासा:
- MD-3010II Control Unit with LCD Display
- जलरोधक शोध कॉइल
- Adjustable Stem (Upper and Lower sections)
- आर्मरेस्ट
- माउंटिंग हार्डवेअर (स्क्रू, वॉशर)
- वापरकर्ता मॅन्युअल
4. उत्पादन संपलेview
The MD-3010II metal detector is designed for efficient and accurate metal detection. Key features include an LCD display for target identification, adjustable sensitivity, and a waterproof search coil.

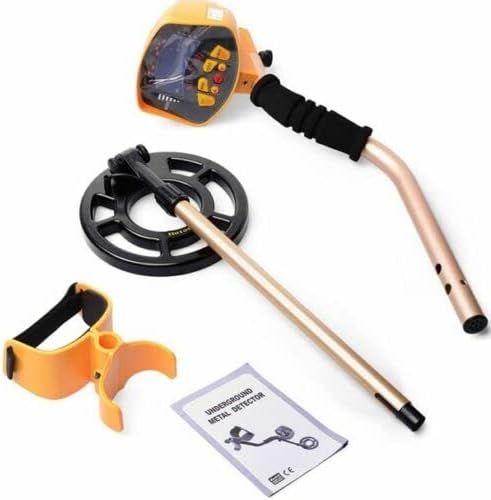

आकृती 4.1: ओव्हरview of the MD-3010II Metal Detector components, including the control unit, search coil, stem, armrest, and user manual.
आकृती 4.2: तपशीलवार view of the control unit, showing the LCD screen for target identification and various control buttons for operation.
आकृती 4.3: The waterproof search coil attached to the lower stem, designed for detection in shallow water.
१. सेटअप आणि असेंब्ली
- शोध कॉइल जोडा: Connect the search coil to the lower stem using the provided non-metallic bolt and wing nut. Ensure it is securely fastened but allows for slight angle adjustment.
- Assemble the Stem: Insert the lower stem into the upper stem. Adjust the length to a comfortable position for your height. The hidden search coil cable is designed to prevent tangling during adjustment.
- Install the Armrest: Slide the armrest onto the upper stem and secure it. The armrest is designed to reduce forearm strain during extended use.
- Mount the Control Unit: Attach the control unit to the top of the upper stem. Ensure the micro-plug from the search coil cable is securely connected to the control unit. This metal plug enhances reliability.
- बॅटरी स्थापना: Open the battery compartment on the control unit. Insert six (6) 1.5V AA alkaline batteries, observing the correct polarity (+/-). Close the compartment securely. The Batteries Condition Indicator on the LCD will show the battery status.
6. ऑपरेटिंग सूचना
६.१ पॉवरिंग चालू करणे आणि मूलभूत ऑपरेशन
- Press the Power button to turn on the detector. The LCD will illuminate.
- समायोजित करा आवाज नियंत्रण knob to a comfortable listening level for the loudspeaker or connected headphones.
- The detector operates in a fully automatic, all-metal detection mode by default.
6.2 LCD Display and Target Identification
The LCD provides visual information about detected objects, even in low light conditions due to its backlight.
- Target Identity: When a metal object is detected, its likely identity will be displayed on the LCD. This allows you to quickly assess if the object is worth recovering.
- Unique Tone for Target: In addition to the visual display, the detector generates a unique audio tone corresponding to the detected target. This allows for detection without constantly watching the screen.
- Batteries Condition Indicator: The LCD also shows the current charge level of the batteries.
6.3 Unwanted Target Elimination (Discrimination)
The MD-3010II allows you to set the detector to ignore certain types of metal objects. Refer to the specific controls on your unit for adjusting discrimination settings. This feature helps in focusing on desired targets and reducing false signals from junk metal.
6.4 हेडफोन वापरणे
A headphone jack is provided for private listening or to enhance detection of faint signals. Both stereo and mono headphones can be used. Connect your headphones to the designated jack on the control unit.
6.5 Detecting in Shallow Water
The search coil is waterproof, allowing you to use it in shallow water. However, the control unit is NOT waterproof and must be kept dry. Avoid submerging the control unit.
7. देखभाल
- स्वच्छता: जाहिराताने डिटेक्टर पुसून टाकाamp प्रत्येक वापरानंतर कापड पुसून टाका. अपघर्षक क्लीनर किंवा सॉल्व्हेंट्स वापरू नका.
- बॅटरी काळजी: गळती रोखण्यासाठी जर डिटेक्टर बराच काळ वापरला जाणार नसेल तर बॅटरी काढून टाका.
- स्टोरेज: डिटेक्टरला थेट सूर्यप्रकाश आणि अति तापमानापासून दूर, थंड, कोरड्या जागी ठेवा.
- केबल तपासणी: Periodically check the search coil cable and connections for any signs of wear or damage.
8. समस्या निवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| डिटेक्टर चालू होत नाही. | मृत किंवा चुकीच्या पद्धतीने स्थापित केलेल्या बॅटरी. | Replace batteries with new 1.5V AA alkaline batteries. Ensure correct polarity. |
| Erratic signals or false readings. | High electromagnetic interference; incorrect sensitivity setting; mineralized ground. | Move to a different location. Reduce sensitivity. Adjust discrimination settings. |
| स्पीकर/हेडफोनमधून आवाज येत नाही. | Volume too low; faulty headphones; loose connection. | Increase volume. Test with different headphones. Check headphone jack connection. |
| कमी शोध खोली. | Low battery power; incorrect ground balance (if applicable); highly mineralized soil. | Replace batteries. Ensure proper sweep technique. |
9. तपशील
| वैशिष्ट्य | तपशील |
|---|---|
| मॉडेल | MD-3010II |
| उर्जा स्त्रोत | २ x १.५ व्ही एए अल्कलाइन बॅटरीज (समाविष्ट नाही) |
| कार्यरत वर्तमान | Standby: 65mA, Max: 150mA |
| संचालन खंडtage श्रेणी | ७.२ व्ही - ८.४ व्ही |
| ऑपरेटिंग वारंवारता | ७.५ KHz +/- 7.5 KHz |
| संवेदनशीलता | Min. 8 inch (for US 50 cent coin) |
| ऑडिओ वारंवारता | 294Hz (re), 330Hz (me), 349Hz (fa), 392Hz (so), 440Hz (la), 494Hz (ti), 523Hz (do) |
| तापमान श्रेणी | -20°C ते 60°C (-4°F ते 140°F) |
| आंतरराष्ट्रीय संरक्षण रेटिंग | IP54 (Control unit not waterproof, search coil is) |
| साहित्य | Metal (main construction) |
| समायोज्य लांबी | होय |
| वजन | 1.37 किलो (अंदाजे) |
10. हमी आणि समर्थन
For warranty information or technical support, please contact Canglan Technology directly. Refer to the contact information provided with your purchase or visit the official Canglan Technology store for assistance.
आपण भेट देऊ शकता Canglan Technology Store अधिक उत्पादने आणि समर्थनासाठी.
