JOROTO F20PRO Folding Treadmill User Manual

1. महत्वाची सुरक्षितता माहिती

ही ट्रेडमिल वापरण्यापूर्वी सर्व सूचना काळजीपूर्वक वाचा. भविष्यातील संदर्भासाठी ही पुस्तिका जपून ठेवा.

• ट्रेडमिल नेहमी सपाट, स्थिर पृष्ठभागावर ठेवा.
• Ensure adequate clear space (at least 2 meters behind and 0.6 meters on each side) around the treadmill during operation.
• ऑपरेशन दरम्यान मुलांना आणि पाळीव प्राण्यांना ट्रेडमिलपासून दूर ठेवा.
• जर ट्रेडमिलमध्ये खराब झालेले कॉर्ड किंवा प्लग असेल किंवा ते योग्यरित्या काम करत नसेल तर ते चालवू नका.
• योग्य अ‍ॅथलेटिक पादत्राणे आणि कपडे घाला.
• Use the safety key at all times. Attach the clip to your clothing before starting your workout.
• कोणताही व्यायाम कार्यक्रम सुरू करण्यापूर्वी डॉक्टरांचा सल्ला घ्या.
• The maximum user weight capacity is 130 kg (286 lbs).

2. उत्पादन संपलेview

The JOROTO F20PRO Folding Treadmill is designed for home and office use, offering a compact and efficient cardio workout solution. It features a powerful motor, adjustable incline, and smart app connectivity.

घटक समाविष्ट:

• JOROTO F20PRO Treadmill Unit
• पॉवर कॉर्ड
• सुरक्षा की
• वापरकर्ता मॅन्युअल (हा दस्तऐवज)

आकृती 2.1: एकूणच view of the JOROTO F20PRO Folding Treadmill. This image displays the treadmill in its unfolded, ready-to-use state, highlighting its compact design and main components like the console, handrails, and running deck.

५. सेटअप आणि प्रारंभिक वापर

The JOROTO F20PRO treadmill comes largely pre-assembled. Follow these steps for initial setup:

1. अनपॅक करणे: Carefully remove the treadmill from its packaging. Retain packaging materials for potential future transport or storage.
2. प्लेसमेंट: Position the treadmill on a firm, level surface, ensuring sufficient clearance around the unit as described in the safety section.
3. Unfolding (if folded): If the treadmill is in its folded position, gently lower the running deck until it locks into place. Ensure all locking mechanisms are secure.
4. कनेक्टिंग पॉवर: Plug the power cord into the treadmill's power input, then into a grounded electrical outlet.
5. Attaching Safety Key: कन्सोलवरील त्याच्या नियुक्त स्लॉटमध्ये सेफ्टी की ठेवा. सेफ्टी की जागेवर असल्याशिवाय ट्रेडमिल चालणार नाही.

Figure 3.1: Product dimensions of the JOROTO F20PRO Treadmill. This image illustrates the treadmill's measurements (length, width, height) in both unfolded and folded states, aiding in proper placement and storage planning.

4. ऑपरेटिंग सूचना

4.1 पॉवर चालू/बंद

• To power on, ensure the safety key is in place and press the 'Start' button on the console.
• To power off, press the 'Stop' button or remove the safety key.

४.२ कन्सोल फंक्शन्स

The LED display shows time, distance, calories, and speed. Use the console buttons to adjust settings.

4.3 गती समायोजन

The treadmill offers speeds up to 12 km/h. Use the '+' and '-' buttons on the console or handrails to increase or decrease speed. Quick speed buttons may also be available for preset speeds.

Figure 4.1: Treadmill speed ranges for various activities. This image illustrates different speed settings (1-3 km/h for leisure walking, 4-6 km/h for fat burning, 7-9 km/h for cardio training, and 10-12 km/h for intensive training) to guide users in selecting appropriate workout intensities.

४.१ मॅन्युअल इनक्लाइन अॅडजस्टमेंट

The treadmill features a manual incline adjustment. To change the incline, stop the treadmill, lift the running deck, and adjust the support feet to the desired incline level (e.g., 0% or 10%). Ensure both sides are adjusted equally and securely before resuming your workout.

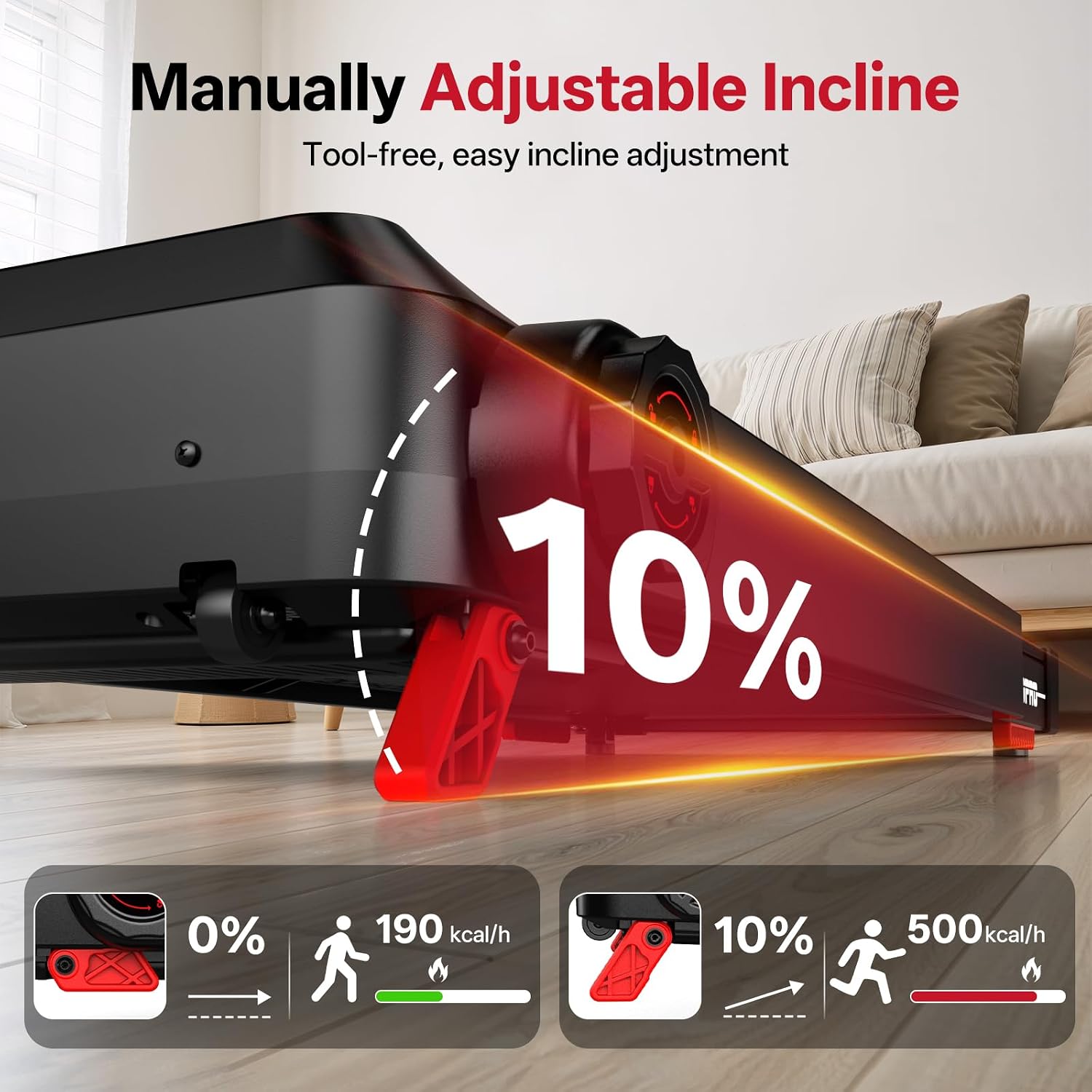

Figure 4.2: Manual incline adjustment mechanism. This image demonstrates how to manually adjust the treadmill's incline, showing the difference between a flat (0%) and an inclined (10%) running surface and the corresponding calorie burn.

4.5 प्री-सेट प्रोग्राम

The treadmill includes 15 pre-set workout programs. Select a program from the console to automatically adjust speed and incline (if applicable) throughout your workout.

४.७ स्मार्ट अॅप कनेक्टिव्हिटी

Connect your treadmill to a compatible fitness app via Bluetooth for enhanced tracking and control. Refer to the app's instructions for pairing and usage.

Figure 4.3: Smart app connectivity feature. This image shows a user exercising on the treadmill while connected to a fitness app, demonstrating how the app displays workout data and enhances the training experience.

4.7 आपत्कालीन थांबा

In case of an emergency, pull the safety key from its slot. The treadmill will immediately stop. The safety key also acts as an automatic shut-off if you accidentally step off the running belt.

५. फोल्डिंग आणि स्टोरेज

The JOROTO F20PRO treadmill features a foldable design for convenient storage.

1. Stop the Treadmill: Ensure the treadmill is completely stopped and powered off.
2. Fold Handrails: Turn the knob on the handrail support to release and fold the handrails downwards.
3. Lift Running Deck: Carefully lift the running deck upwards until it locks into its vertical storage position.
4. Move for Storage: Use the integrated transport wheels to move the folded treadmill to a suitable storage location.

Figure 5.1: Foldable handrail design and storage. This image demonstrates the process of folding the treadmill's handrails and then the entire unit for compact storage, highlighting its space-saving feature.

6. देखभाल

नियमित देखभालीमुळे तुमच्या ट्रेडमिलचे दीर्घायुष्य आणि सुरक्षित ऑपरेशन सुनिश्चित होते.

6.1 स्वच्छता

• जाहिरातीने कन्सोल आणि बाह्य पृष्ठभाग पुसून टाका.amp प्रत्येक वापरानंतर कापड. अपघर्षक क्लीनर टाळा.
• धूळ जमा होऊ नये म्हणून ट्रेडमिलखाली वेळोवेळी व्हॅक्यूम करा.

6.2 रनिंग बेल्ट स्नेहन

The running belt requires periodic lubrication to reduce friction and extend its lifespan. Refer to the specific lubrication instructions provided with your treadmill or contact customer support for guidance on the correct lubricant and application frequency.

6.3 रनिंग बेल्ट समायोजन

If the running belt starts to slip or drift to one side, it may need adjustment. Consult the detailed instructions in the full manual or contact customer support for proper belt tensioning and centering procedures.

7. समस्या निवारण

जर तुम्हाला तुमच्या ट्रेडमिलमध्ये समस्या येत असतील, तर खालील सामान्य समस्या आणि उपाय पहा:

For issues not listed here or if solutions do not resolve the problem, please contact JOROTO customer support.

8. तपशील

9. हमी आणि समर्थन

Your JOROTO F20PRO Treadmill is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, parts, or warranty claims, please contact JOROTO customer service through the retailer where the product was purchased or visit the official JOROTO webसाइट

ग्राहक समर्थन: मदतीसाठी, कृपया भेट द्या JOROTO Store on Amazon or consult your purchase documentation.
