1. परिचय
Thank you for choosing the KLARSTEIN Quickstick Flex Sous Vide Immersion Cooker. This device is designed to provide precise temperature control for sous vide cooking, ensuring consistent and delicious results. Please read this manual thoroughly before first use to ensure proper operation, safety, and maintenance.
2. महत्त्वाच्या सुरक्षितता सूचना
- उपकरण वापरण्यापूर्वी सर्व सूचना वाचा.
- Do not immerse the main unit above the MAX water level line. The device is waterproof to IPX7 standards, but improper immersion can cause damage.
- Always ensure the water level is between the MIN and MAX markings on the device.
- The appliance features a Safety First technology with an automatic shut-off if the water level drops to a critical point.
- Use only with a suitable cooking vessel that can withstand high temperatures.
- मुलांच्या आवाक्याबाहेर ठेवा.
- वापरात नसताना आणि साफ करण्यापूर्वी उपकरण पॉवर आउटलेटमधून अनप्लग करा.
- खराब झालेल्या कॉर्ड किंवा प्लगने किंवा उपकरणामध्ये बिघाड झाल्यानंतर किंवा कोणत्याही प्रकारे नुकसान झाल्यानंतर कोणतेही उपकरण चालवू नका.
- घराबाहेर वापरू नका.
3. उत्पादन संपलेview
The KLARSTEIN Quickstick Flex is an immersion circulator designed for sous vide cooking. It features a powerful heating element, a 3D circulation pump, and an intuitive LCD touch display.
घटक
- नियंत्रण प्रमुख: Contains the LCD touch display and control buttons.
- Heating Element & Pump Housing: The main body that heats and circulates water.
- समायोज्य Clamp: For securing the device to the side of a cooking pot.
- Water Level Markings (MIN/MAX): Indicates the safe operating water level.
Image: The KLARSTEIN Quickstick Flex Sous Vide Immersion Cooker attached to a pot, ready for use.
Image: Close-up of the stainless steel shaft showing the MIN and MAX water level indicators.
4. सेटअप
- Choose a Pot: Select a heat-resistant pot or container with a capacity of up to 21 quarts (approximately 20 liters).
- Attach the Cooker: Securely attach the Quickstick Flex to the side of your chosen pot using the adjustable clamp. Ensure it is firmly in place.
- पाण्याने भरा: Fill the pot with water. The water level must be between the MIN and MAX markings on the immersion cooker. Do not exceed the MAX line to prevent water from entering the control head.
- जेवणाची जागा: तुमचे व्हॅक्यूम सील केलेले अन्न वॉटर बाथमध्ये ठेवा. अन्न पूर्णपणे बुडलेले आहे याची खात्री करा.
- वीज कनेक्ट करा: Plug the power cord into a standard 110-120V ~ 50-60 Hz electrical outlet.
Image: The sous vide cooker properly clamped to a pot with food submerged.
5. ऑपरेटिंग सूचना
5.1 पॉवर चालू/बंद
Once plugged in, the device will enter standby mode. Press the power button on the LCD touch display to turn the unit on.
5.2 तापमान सेट करणे
- On the LCD touch display, press the 'SET TEMP' button.
- Use the '+' and '-' buttons to adjust the desired cooking temperature. The temperature range is 32-194 °F (0-95 °C).
- Press 'SET' to confirm the temperature. The device will begin heating the water to the set temperature.
Image: The device offers precise temperature control for consistent cooking results.
६.१ टाइमर सेट करणे
- On the LCD touch display, press the 'WORK TIME' button.
- Use the '+' and '-' buttons to set the desired cooking time (up to 60 minutes, or continuous operation if not set).
- Press 'SET' to confirm the time. The timer will start once the target temperature is reached.
5.4 3D Circulation
The built-in pump ensures 3D water circulation, distributing heat evenly throughout the cooking vessel for uniform cooking of your food.
Image: Illustration of the 3D circulation feature for even heat distribution.
5.5 180° Rotating Head
The display head can be rotated 180 degrees for optimal viewing from any angle, enhancing user convenience.
Image: The rotatable LCD touch display for flexible viewing
6. देखभाल आणि स्वच्छता
Regular cleaning ensures the longevity and optimal performance of your Quickstick Flex.
- अनप्लग: Always unplug the device from the power outlet and allow it to cool completely before cleaning.
- स्वच्छ धुवा: The heating element and pump housing can be rinsed under running water. Avoid submerging the control head.
- पुसणे: यंत्राचा बाह्य भाग सॉफ्टने पुसून टाका, डीamp कापड. हट्टी डागांसाठी, सौम्य डिटर्जंट वापरता येईल.
- कोरडे: साठवण्यापूर्वी किंवा पुढील वापरण्यापूर्वी सर्व भाग पूर्णपणे कोरडे असल्याची खात्री करा.
- वर्णन करणे: If mineral deposits build up on the heating element, descale the unit by running it in a water bath with a descaling solution (e.g., vinegar and water) according to the solution's instructions.

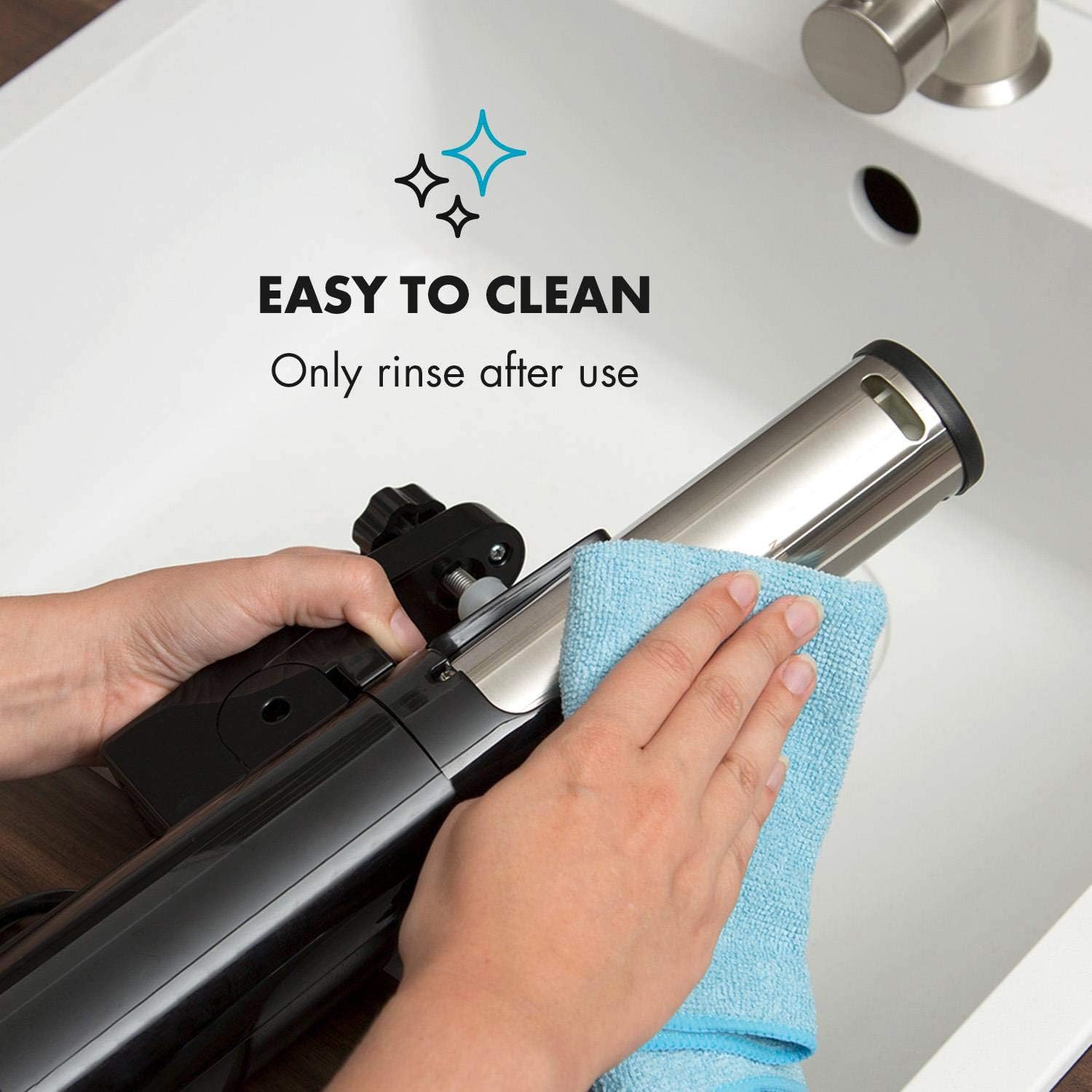

Image: Cleaning the sous vide cooker by rinsing the shaft.
7. समस्या निवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Device beeps continuously or displays a low water error. | Water level is below the MIN marking. | Add water to the pot until the level is between MIN and MAX. If the error persists after adding water, unplug the device for a few minutes, then plug it back in. |
| Device shuts off unexpectedly during operation. | Water level dropped too low, triggering the safety shut-off. | Check water level and refill if necessary. Restart the device. For long cooking times, ensure the pot is covered to minimize evaporation. |
| Water is not heating or circulating. | Device not powered on, or heating element/pump issue. | Ensure the device is plugged in and powered on. Check for any error codes on the display. If the issue persists, contact customer support. |
| Temperature is inaccurate. | Mineral buildup on the temperature sensor. | Descale the unit as described in the Maintenance section. |
8. तपशील
- मॉडेल: Quickstick Flex
- शक्ती: 1300 वॅट्स
- खंडtage: 110-120V ~ | 50-60 Hz
- तापमान श्रेणी: 32-194 °F (0-95 °C)
- टाइमर कार्य: Up to 60 minutes (or continuous)
- क्षमता: Up to 21 quarts (approx. 20 liters)
- जलरोधक रेटिंग: IPX7
- नियंत्रण पद्धत: एलसीडी टच डिस्प्ले
- परिमाण (WxHxD): Approx. 3.5 x 16.5 x 5 inches (5"D x 3"W x 16.5"H)
- वजन: अंदाजे 2.8 एलबीएस
- साहित्य: धातू
- रंग: पियानो ब्लॅक
७. वॉरंटी आणि ग्राहक समर्थन
For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact KLARSTEIN customer service directly. Keep your proof of purchase for any warranty claims.
