1. परिचय
This manual provides instructions for the installation, operation, and maintenance of the hansgrohe Showerpipe Duschsystem Rainmaker Select E 460 2jet EcoSmart. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. सुरक्षितता माहिती
- स्थापनेदरम्यान सर्व स्थानिक प्लंबिंग आणि बिल्डिंग कोडचे पालन केले जात आहे याची खात्री करा.
- स्थापना एखाद्या पात्र व्यावसायिकाने केली पाहिजे.
- Do not exceed the maximum operating pressure specified in the technical data.
- The safety stop at 40°C (104°F) is designed to prevent scalding. Do not bypass this feature unless necessary and with extreme caution.
- दंव पासून उत्पादन संरक्षित करा.
२. घटक समाविष्ट
The hansgrohe Showerpipe Duschsystem Rainmaker Select E 460 2jet EcoSmart typically includes the following components:
- Overhead Shower: Rainmaker Select 460 2jet
- Hand Shower: Raindance Select S 120 3jet EcoSmart 9 l/min
- Shower Holder: Porter'S
- Shower Hose: Isiflex 1.60 m
- Thermostat: ShowerTablet Select 700 with integrated shelf
- शॉवर आर्म
- माउंटिंग हार्डवेअर

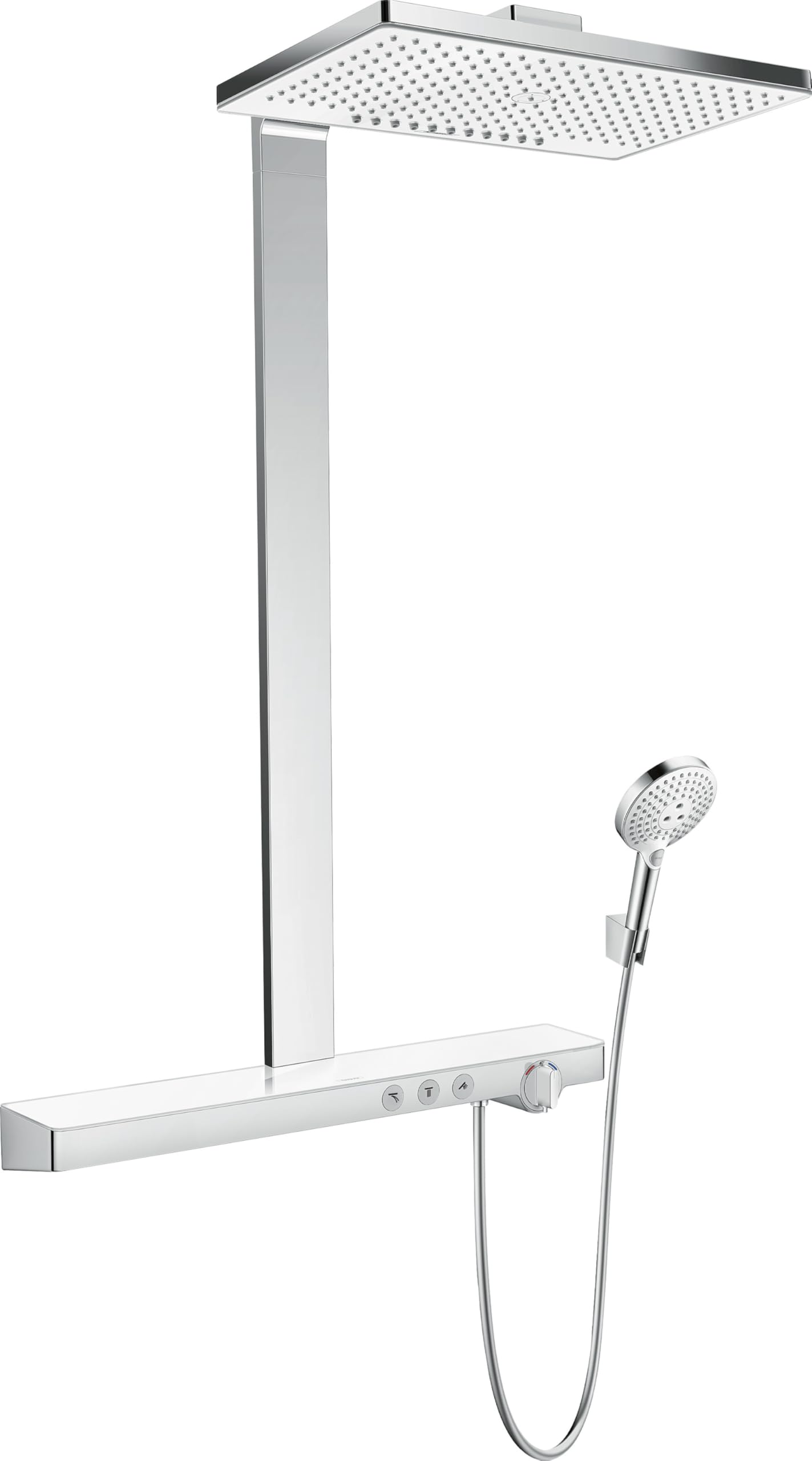

आकृती 1: ओव्हरview of the hansgrohe Showerpipe Duschsystem Rainmaker Select E 460 2jet EcoSmart. This image displays the complete shower system, including the large square overhead shower, the vertical shower arm, the horizontal thermostat with control buttons and integrated shelf, and the hand shower with its hose and holder.
4. सेटअप आणि स्थापना
This shower system is designed for surface-mounted installation. Professional installation is recommended.
४.१ स्थापनापूर्व तपासणी
- Verify that the water supply lines (hot and cold) are correctly positioned and accessible.
- Ensure the wall surface is suitable for mounting and can support the weight of the shower system.
- Check the connection size (DN15) and thread (G ½) for compatibility.
- Confirm the pitch (distance between hot and cold water inlets) is 150 mm.
३.२ स्थापना पायऱ्या (सामान्य मार्गदर्शक)
- भिंत तयार करा: Mark the drilling points for the wall brackets according to the provided template.
- माउंट कंस: Drill holes, insert wall plugs, and secure the mounting brackets.
- पाणी पुरवठा कनेक्ट करा: Attach the thermostat unit to the hot and cold water connections. Ensure proper sealing.
- थर्मोस्टॅट बसवणे: Secure the thermostat ShowerTablet Select 700 to the wall brackets.
- Install Shower Arm and Overhead Shower: Attach the shower arm to the main unit and then connect the Rainmaker Select 460 2jet overhead shower.
- Connect Hand Shower: Attach the Isiflex shower hose to the thermostat and the Raindance Select S 120 3jet hand shower. Mount the Porter'S shower holder.
- गळतीसाठी चाचणी: पाणीपुरवठा चालू करा आणि गळतीसाठी सर्व कनेक्शन तपासा.
5. ऑपरेटिंग सूचना
The Showerpipe system allows for simultaneous use of multiple water outlets.
5.1 Thermostat ShowerTablet Select 700
आकृती 2: Detail of the ShowerTablet Select 700 thermostat. This image highlights the horizontal control panel with its temperature dial on the right and the Select buttons for activating the overhead and hand showers.
- तापमान नियंत्रण: Use the rotary knob on the right side of the thermostat to adjust the water temperature.
- सुरक्षितता थांबा: The thermostat features a safety stop at 40°C (104°F) to prevent accidental scalding. To exceed this temperature, press and hold the safety button while turning the knob.
- Flow Control (Select Button): The system uses Select buttons to control the water flow to the different outlets.
- Press the button marked with the overhead shower icon to activate the Rainmaker Select 460 2jet.
- Press the button marked with the hand shower icon to activate the Raindance Select S 120 3jet.
- Press the button again to turn off the respective outlet.
- एकात्मिक शेल्फ: The top surface of the thermostat serves as a generous shelf for shower essentials.
5.2 Overhead Shower Rainmaker Select 460 2jet
- फवारणीचे प्रकार: The overhead shower offers two spray types:
- पाऊस: A full, soft shower rain, ideal for rinsing shampoo
- पावसाचा प्रवाह: A powerful, concentrated jet for an invigorating shower experience.
- Switching Spray Types: The method for switching between Rain and RainStream is typically integrated into the shower head design or controlled via a separate mechanism on the shower head itself. Refer to the specific overhead shower instructions for details.
- इकोस्मार्ट: This technology limits the water flow to 9 l/min for both Rain and RainStream jets, contributing to water and energy savings.
5.3 Hand Shower Raindance Select S 120 3jet EcoSmart
- The hand shower features 3 spray types. These are typically selected by pressing a button on the hand shower itself.
- इकोस्मार्ट: The hand shower also incorporates EcoSmart technology, limiting its flow rate to 9 l/min.
6. देखभाल आणि स्वच्छता
Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe Showerpipe.
- साफसफाईचे पृष्ठभाग: Clean the chrome and white surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Avoid cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid, as these can damage the finish.
- Cleaning Spray Disc: The white spray disc of the overhead shower is designed to be easy to clean. Regularly wipe the silicone nozzles to remove limescale deposits. For stubborn deposits, the spray disc may be removable for more thorough cleaning (refer to specific overhead shower instructions).
- चुनखडी काढणे: In areas with hard water, limescale can build up. Use a descaling agent specifically designed for bathroom fixtures, following the manufacturer's instructions. Ensure thorough rinsing after descaling.
- नळीची काळजी: Periodically check the shower hose for kinks or damage. Clean the hose with a soft cloth and mild soap.
7. समस्या निवारण
| समस्या | संभाव्य कारण | उपाय |
|---|---|---|
| Low water flow from shower. |
|
|
| पाण्याचे तापमान चढ-उतार होते किंवा चुकीचे असते. |
|
|
| कनेक्शनमध्ये गळती. |
|
|
8. तपशील
- मॉडेल: 27028400
- ब्रँड: हंसग्रोहे
- उत्पादन प्रकार: Showerpipe Duschsystem
- Overhead Shower Size: 460 x 300 मिमी
- Overhead Shower Spray Types: Rain, RainStream
- Flow Rate (Overhead Shower, at 3 bar): 9 l/min (EcoSmart)
- Flow Rate (Hand Shower, at 3 bar): 9 l/min (EcoSmart)
- शॉवर आर्म लांबी: 450 मिमी
- थर्मोस्टॅटः ShowerTablet Select 700
- सुरक्षितता थांबा: 40°C (adjustable hot water limitation)
- स्थापना प्रकार: पृष्ठभाग-आरोहित
- कनेक्शन आकार: DN15
- कनेक्शन थ्रेड: जी ½
- खेळपट्टी: 150 मिमी
- समाविष्ट घटक: Shower Arm, Shower Head, Hand Shower, Shower Hose, Shower Holder, Thermostat
- साहित्य: Brass (Handle Material)
9. हमी आणि समर्थन
hansgrohe products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official hansgrohe webसाइट
For technical support, spare parts, or service inquiries, please contact hansgrohe customer service. Contact details can typically be found on the official hansgrohe webसाइट किंवा उत्पादन पॅकेजिंगमध्ये.
ऑनलाइन संसाधने: www.hansgrohe.com
