DSTE NP-400 Rechargeable Li-ion Battery Instruction Manual

1. परिचय

This manual provides essential information for the safe and effective use of your DSTE NP-400 Rechargeable Li-ion Battery. Please read these instructions carefully before using the product and retain them for future reference. This battery is designed to provide reliable power for compatible digital cameras.

2. उत्पादन संपलेview

The DSTE NP-400 is a high-capacity lithium-ion battery pack designed as a replacement or spare for various camera models. It features a durable ABS material housing and robust metal contacts for reliable performance.

२.१ बॉक्समध्ये काय आहे

• DSTE NP-400 Rechargeable Li-ion Battery (Quantity as purchased, typically 2 units)

2.2 प्रमुख वैशिष्ट्ये

• बॅटरी प्रकार: लिथियम आयन
• क्षमता: 2300 मिलीamp तास (mAh)
• खंडtage: 7.4 व्होल्ट
• गृहनिर्माण: टिकाऊ ABS साहित्य
• संपर्क: Reliable metal contacts
• पुन्हा वापरण्यायोग्यता: रिचार्ज करण्यायोग्य

आकृती 1: समोर view of the DSTE NP-400 Li-ion battery, displaying the model number, voltage, and capacity on its label.

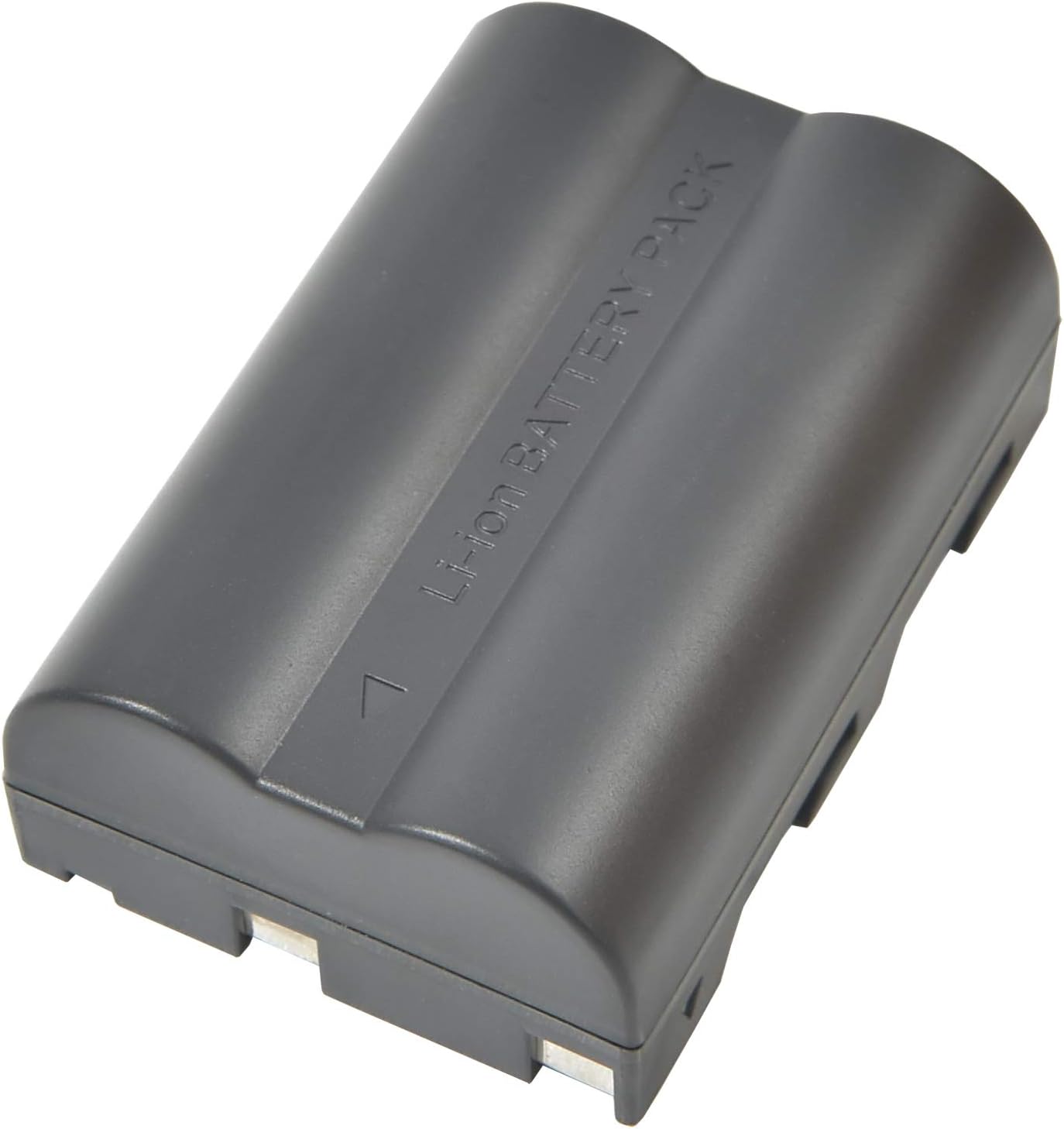

आकृती 2: मागे view of the DSTE NP-400 Li-ion battery, highlighting its smooth, dark gray casing.

आकृती 3: तपशीलवार view of the robust metal contacts on the DSTE NP-400 Li-ion battery, essential for power transfer.

१०.२. सुसंगतता

The DSTE NP-400 battery is compatible with various camera models that use the NP-400 or D-Li50 battery type. These include, but are not limited to:

• Konica Minolta A-5
• Konica Minolta A-7
• Konica Minolta Digital Dimage A1
• Konica Minolta Digital Dimage A2
• Konica Minolta Dynax 5D
• Konica Minolta Dynax 7D
• Konica Minolta Maxxum 5D
• Konica Minolta Maxxum 7D
• Pentax D-Li50 compatible cameras

4. सुरक्षितता माहिती

To ensure safe operation and prolong the life of your battery, please observe the following safety precautions:

• Do not connect improperly: Ensure correct polarity when inserting the battery into a device or charger.
• अत्यंत परिस्थिती टाळा: Do not dispose of the battery in fire or expose it to excessive heat.
• काळजीपूर्वक हाताळा: Do not crush, puncture, incinerate, or short circuit the external contacts.
• बॅटरी मुलांच्या आवाक्याबाहेर ठेवा.
• बॅटरी पॅक वेगळे करू नका.
• If the battery leaks or shows signs of damage, discontinue use immediately.
• वापरलेल्या बॅटरीची स्थानिक नियमांनुसार विल्हेवाट लावा.

Figure 4: Battery label with important safety warnings and regulatory marks.

5. सेटअप आणि स्थापना

5.1 बॅटरी चार्ज करणे

Before first use, fully charge the battery. Use a compatible Li-ion battery charger designed for NP-400 or D-Li50 type batteries. Follow the instructions provided with your charger for proper charging procedures. Typically, a charging indicator light will show when the battery is charging and when it is fully charged.

5.2 बॅटरी स्थापित करीत आहे

1. Ensure your camera is turned off before installing or removing the battery.
2. Locate the battery compartment on your camera (refer to your camera's manual if unsure).
3. बॅटरी कंपार्टमेंट कव्हर उघडा.
4. Insert the DSTE NP-400 battery, aligning the contacts correctly. The battery should slide in smoothly and lock into place. Do not force the battery.
5. बॅटरी कंपार्टमेंट कव्हर सुरक्षितपणे बंद करा.

6. ऑपरेटिंग सूचना

6.1 सामान्य वापर

Once the battery is fully charged and installed, you can power on your camera and begin use. The battery is a full decoded battery, meaning it should communicate correctly with your camera regarding charge levels and remaining power, similar to an original equipment manufacturer (OEM) battery.

6.2 Battery Life and Performance

The 2300mAh capacity provides extended shooting time. Actual battery life will vary depending on camera model, usage patterns (e.g., frequent flash use, video recording, LCD screen brightness), and environmental conditions. For optimal performance, always start with a fully charged battery.

7. देखभाल

Proper maintenance helps extend the lifespan of your DSTE NP-400 battery:

• स्टोरेज: Store batteries in a cool, dry place away from direct sunlight and extreme temperatures. For long-term storage, charge the battery to about 50-60% capacity.
• स्वच्छता: Periodically clean the metal contacts of the battery with a clean, dry cloth to ensure good connection with the camera and charger.
• Avoid complete discharge: While Li-ion batteries do not suffer from memory effect, avoiding complete discharge can help maintain overall battery health.
• तापमान: Do not expose the battery to temperatures below 0°C (32°F) or above 40°C (104°F) for extended periods.

8. समस्या निवारण

If you encounter issues with your DSTE NP-400 battery, refer to the following table for common problems and solutions:

9. तपशील

१०. उत्पादन व्हिडिओ

व्हिज्युअल ओव्हरसाठी हा अधिकृत उत्पादन व्हिडिओ पहा.view of the DSTE NP-400 battery:

11. हमी आणि समर्थन

For warranty information or technical support, please contact DSTE Technology directly through their official channels or the retailer where the product was purchased. Keep your proof of purchase for any warranty claims.

DSTE Technology: Visit the DSTE Store on Amazon
